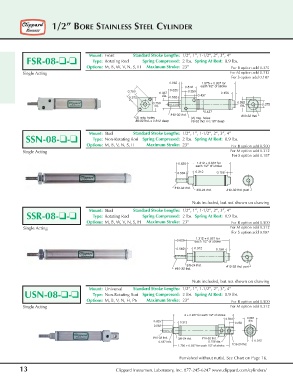

1/2” BORE STAINLESS STEEL CYLINDER

Mount: Front Standard Stroke Lengths: 1/2”, 1”, 1-1/2”, 2”, 3”, 4”
FSR-08-❑-❑ Type: Rotating Rod Spring Compressed: 2 lbs. Spring At Rest: 0.9 lbs.
Maximum Stroke: 23”
Options: M, B, W, V, N, S, H For B option add 0.375
Single Acting For M option add 0.312
For S option add 0.187
0.062 1.875 + 0.937 for
0.812 each 1/2" of stroke
0.625
0.750 0.250
0.437 0.156
dia. 0.437
0.375 0.562
0.750 0.562
sq. dia. 0.375
0.437
#10-32 thd. #10-32 thd.
(2) mtg. holes (2) mtg. holes
#8-32 thd. x 0.312 deep #8-32 thd. x 0.187 deep
Mount: Stud Standard Stroke Lengths: 1/2”, 1”, 1-1/2”, 2”, 3”, 4”
SSN-08-❑-❑ Type: Non-Rotating Rod
Spring Compressed: 2 lbs. Spring At Rest: 0.9 lbs.
Maximum Stroke: 23”
Options: M, B, V, N, S, H For B option add 0.500
Single Acting For M option add 0.312
For S option add 0.187
0.625 1.312 + 0.937 for
each 1/2" of stroke
0.312
0.562 0.156

#10-32 thd.
3/8-24 thd. #10-32 thd. port
Nuts included, but not shown on drawing
Mount: Stud Standard Stroke Lengths: 1/2”, 1”, 1-1/2”, 2”, 3”, 4”
SSR-08-❑-❑ Type: Rotating Rod Spring Compressed: 2 lbs. Spring At Rest: 0.9 lbs.
Maximum Stroke: 23”
Options: M, B, W, V, N, S, H For B option add 0.500
Single Acting For M option add 0.312
For S option add 0.187
1.312 + 0.937 for
0.625 each 1/2" of stroke
0.562 0.312 0.156

3/8-24 thd. #10-32 thd. port
#10-32 thd.

Nuts included, but not shown on drawing
Mount: Universal Standard Stroke Lengths: 1/2”, 1”, 1-1/2”, 2”, 3”, 4”
USN-08-❑-❑ Type: Non-Rotating Rod
Spring Compressed: 2 lbs. Spring At Rest: 0.9 lbs.
Maximum Stroke: 23”
Options: M, B, V, N, H, P6 For B option add 0.500
Single Acting For M option add 0.312
2 + 0.937 for each 1/2" of stroke
0.500 0.687
0.625 dia.
0.312 0.250
0.562
#10-32 thd. 3/8-24 thd. #10-32 thd.
0.187 hex. 0.156 dia. 0.312
7/16-20 thd.
1.750 + 0.937 for each 1/2" of stroke
Furnished without nut(s). See Chart on Page 16.
