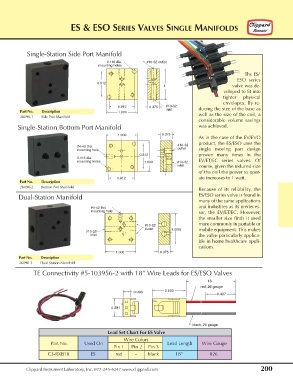

ES & ESO SERIES VALVES SINGLE MANIFOLDS

Single-Station Side Port Manifold

0.116 dia. #10-32 outlet
mounting holes
The ES/
ESO series
0.812
1 valve was de-
veloped to fit into
tighter physical
envelopes. By re-
0.812 0.375 #10-32 ducing the size of the base as
Part No. Description 1.000 inlet
26090-1 Side Port Manifold well as the size of the coil, a
considerable volume savings
Single-Station Bottom Port Manifold was achieved.

1.000 0.375
As in the case of the EV/EVO
product, the ES/ESO uses the
#4-40 thd. #10-32
mounting hole outlet single moving part design
0.812 proven many times in the
0.116 dia.
mounting holes 1.000 #10-32 EV/ET/EC series valves. Of
inlet course, given the reduced size
of the coil the power to oper-
0.812 ate increases to 1 watt.
Part No. Description
26090-2 Bottom Port Manifold
Because of its reliability, the
Dual-Station Manifold ES/ESO series valve is found in
many of the same applications
#4-40 thd. and industries as its predeces-
mounting hole sor, the EV/ET/EC. However,
the smaller size finds it used
more commonly in portable or
#10-32
outlet 1.000) mobile equipment. This makes
#10-32
inlet the valve particularly applica-
ble in home healthcare appli-
cations.
1.000 0.375
Part No. Description
26090-3 Dual Station Manifold
TE Connectivity #5-103956-2 with 18” Wire Leads for ES/ESO Valves

18
red, 26 gauge
0.500
0.093
0.437

0.281

black, 26 gauge
Lead Set Chart For ES Valve

Wire Colors
Part No. Used On Lead Length Wire Gauge
Pin 1 Pin 2 Pin 3
C3-RXB18 ES red ~ black 18” #26
