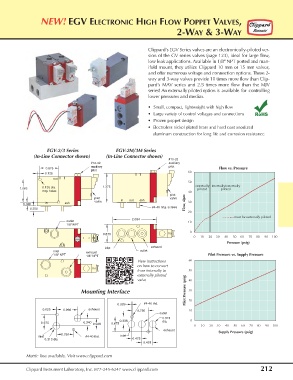

NEW! EGV ELECTRONIC HIGH FLOW POPPET VALVES,

2-WAY & 3-WAY

Clippard's EGV Series valves are an electronically-piloted ver-
sion of the GV series valves (page 123), ideal for large flow,
low leak applications. Available in 1/8" NPT ported and man-
ifold mount, they utilize Clippard 10 mm or 15 mm valves,
and offer numerous voltage and connection options. These 2-
way and 3-way valves provide 10 times more flow than Clip-
pard’s MAV series and 2.5 times more flow than the MJV
series! An externally piloted option is available for controlling
lower pressures and medias.
• Small, compact, lightweight with high flow
• Large variety of control voltages and connections RoHS
• Proven poppet design
• Electroless nickel plated brass and hard coat anodized
aluminum construction for long life and corrosion resistance

EGV-2/3 Series EGV-2M/3M Series
(In-Line Connector shown) (In-Line Connector shown)
#10-32
#10-32 auxiliary
auxiliary pilot
0.875 Flow vs. Pressure
pilot 60
0.125
out
50
externally internally/externally
1.375
1.063 0.125 dia. piloted piloted
mtg. holes 40
pilot
pilot valve
valve in out exh Flow, slpm 30
0.188 in exh
#4-40 mtg. screws
0.250
20
must be externally piloted
2.054
outlet 10
1/8” NPT
0
0.875
0 10 20 30 40 50 60 70 80 90 100
Pressure (psig)
exhaust
inlet
inlet exhaust outlet
1/8” NPT Pilot Pressure vs. Supply Pressure
1/8” NPT
View instructions 60
on how to convert
from internally to 50
externally piloted
Pilot Pressure (psig) 30
valve 40
Mounting Interface
0.029 #4-40 thd. 20
0.029 0.966 exhaust 0.750 10
outlet
0.313
0.338 dia. 0
0.675 0.340 0.508 0.675
0 10 20 30 40 50 60 70 80 90 100
exhaust
Supply Pressure (psig)
0.750
inlet #4-40 thd. inlet
0.313 dia 0.475
0.491
Metric line available. Visit www.clippard.com
