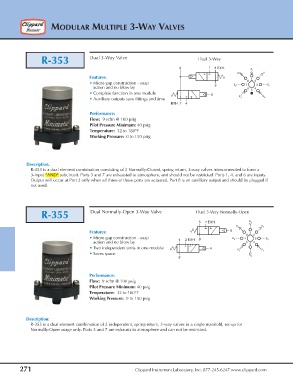

MODULAR MULTIPLE 3-WAY VALVES

R-353 Dual 3-Way Valve Dual 3-Way

8 1 3 EXH. S
1
(O) O
Features: 1
8 2
• Micro gap construction - snap E 7 3 E
action and no blow by 2 2 6 4 1
5
• Complete function in one module
6 P S
• Auxiliary outputs save fittings and time 1 2
EXH. 7 4
Performance:
Flow: 9 scfm @ 100 psig
Pilot Pressure Minimum: 40 psig
Temperature: 32 to 180°F
Working Pressure: 0 to 150 psig

Description:
R-353 is a dual element combination consisting of 2 Normally-Closed, spring return, 3-way valves interconnected to form a
3-input “AND” subcircuit. Ports 3 and 7 are exhausted to atmosphere, and should not be restricted. Ports 1, 4, and 6 are inputs.
Output will occur at Port 2 only when all three of these ports are actuated. Port 8 is an auxiliary output and should be plugged if
not used.

R-355 Dual Normally-Open 3-Way Valve Dual 3-Way Normally-Open

5 7 EXH. S 1
O O
2 1
Features: 6 1 1
8 8 2 2
• Micro gap construction - snap 1 3 EXH. 8 E 2 7 7 3 3 E
action and no blow by 6 6 5 5 4 4 1
1
• Two independent units in one module 4
P P
2 1
• Saves space S
2 2
Performance:
Flow: 9 scfm @ 100 psig
Pilot Pressure Minimum: 40 psig
Temperature: 32 to 180°F
Working Pressure: 0 to 150 psig

Description:
R-355 is a dual element combination of 2 independent, spring-return, 3-way valves in a single manifold, set-up for
Normally-Open usage only. Ports 3 and 7 are exhausts to atmosphere and can not be restricted.
