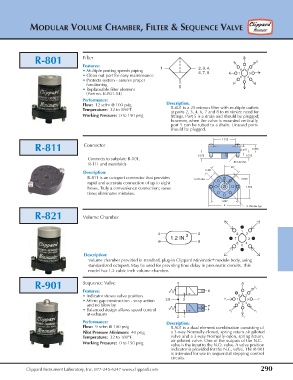

MODULAR VOLUME CHAMBER, FILTER & SEQUENCE VALVE

R-801 Filter S O

Features: 1 2, 3, 4, 1
• Multiple porting speeds piping 6, 7, 8 8 2
• Clean out port for easy maintenance 7 6 4 3
• Protects system - assures proper 5
functioning 5
• Replaceable filter element
(Part no. R-801-14)
Performance:
Flow: 12 scfm @ 100 psig Description:
Temperature: 32 to 180°F R-801 is a 25 micron filter with multiple outlets
at ports 2, 3, 4, 6, 7 and 8 to minimize need for
Working Pressure: 0 to 150 psig fittings. Port 5 is a drain and should be plugged;
however, when the valve is mounted vertically
port 5 can be tubed to a drain. Unused ports
should be plugged.

1.312
R-811 Connector 0.437 0.390

0.375 0.312
Connects to subplate R-101,
#10-32 thd.
R-111 and manifolds
0.421
Description:
R-811 is an octoport connector that provides
0.375 dia. 0.093
rapid and accurate connection of up to eight
hoses. Truly a convenience connection; saves 1.500
time; eliminates mistakes.
1.687
2
0.156 dia. typ.
R-821 Volume Chamber

1
4 3 2 8 2
1.2 IN. 7 3
6 8
6 4
5
Description:
Volume chamber provided in standard, plug-in Clippard Minimatic module body, using
®
standardized octoport. May be used for providing time delay in pneumatic circuits. This
model has 1.2 cubic inch volume chamber.

R-901 Sequence Valve 5 S O 1
Features: 6 1
• Indicator shows valve position 8 2
• Micro gap construction - snap action 2,8 3 P 1 7 6 4 3 E
and no blow by 7 5
• Balanced design allows speed control 4 P 2 P 1
at exhausts
3 1 O 1
Performance: Description:
Flow: 9 scfm @ 100 psig R-901 is a dual element combination consisting of
Pilot Pressure Minimum: 40 psig a 3-way Normally-closed, spring return air piloted
Temperature: 32 to 180°F valve and a 3-way Normally-open, spring return,
air piloted valve. One of the outputs of the N.C.
Working Pressure: 0 to 150 psig
valve is the input to the N.O. valve. A valve position
indicator is provided for the N.C. valve. The R-901
is intended for use in sequential stepping control
circuits.
