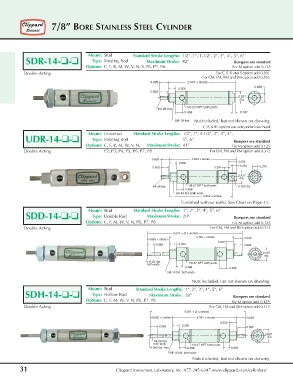

7/8” BORE STAINLESS STEEL CYLINDER

Mount: Stud Standard Stroke Lengths: 1/2”, 1”, 1-1/2”, 2”, 3”, 4”, 5”, 6”
SDR-14-❑-❑ Type: Rotating Rod Maximum Stroke: 42” Bumpers are standard
Options: C, F, R, M, W, V, N, S, P6, P7, P8 For M option add 0.125
Double Acting For C, F, R and S option add 0.281
For CM, FM, RM and SM option add 0.593
0.625 2.937 + stroke
0.625
0.500
0.562
0.937
dia.
1/8-27 NPT both ports
1/4-28 thd.
0.468 0.187
5/8-18 thd. Nut included, but not shown on drawing
C, F, & R options use side ported rear head
Mount: Universal Standard Stroke Lengths: 1/2”, 1”, 1-1/2”, 2”, 3”, 4”,
UDR-14-❑-❑ Type: Rotating Rod 5”, 6” Bumpers are standard
Maximum Stroke: 41”
Options: C, F, R, M, W, V, N, For M option add 0.125
Double Acting P2, P3, P4, P5, P6, P7, P8 For CM, FM and RM option add 0.312
0.625 3.843 + stroke
0.625
0.500
0.281
0.562 0.281 0.375
0.937
dia.
1/4-28 thd. 1/8-27 NPT both ports 0.250 dia.
0.468
5/8-18 thd. both ends
3.562 + stroke
Furnished without nut(s). See Chart on Page 33.
Mount: Stud Standard Stroke Lengths: 1”, 2”, 3”, 4”, 5”, 6”
SDD-14-❑-❑ Type: Double Rod Maximum Stroke: 20” Bumpers are standard
Options: C, F, M, W, V, N, P6, P7, P8 For M option add 0.125
Double Acting For CM, FM and RM option add 0.312
5.031 + (2 x stroke)
3.781 + stroke
0.625 + stroke 0.625
0.500
0.562 0.500 0.562
0.937
dia.
1/4-28 thd. 1/8-27 NPT both ports
both ends
0.468 0.468
5/8-18 thd. both ends
Nuts included, but not shown on drawing
Mount: Stud Standard Stroke Lengths: 1”, 2”, 3”, 4”, 5”, 6”
SDH-14-❑-❑ Type: Hollow Rod Maximum Stroke: 20” Bumpers are standard
Options: C, F, M, W, V, N, P6, P7, P8 For M option add 0.125
Double Acting For CM, FM and RM option add 0.312
5.031 + (2 x stroke)
0.625 + stroke 3.781 + stroke 0.625
0.500
0.562 0.500 0.562
0.937
dia.
1/4-28 thd.
both ends 1/8-27 NPT both ports
0.062 dia.-thru 0.468 0.468
5/8-18 thd. both ends
Nuts included, but not shown on drawing
