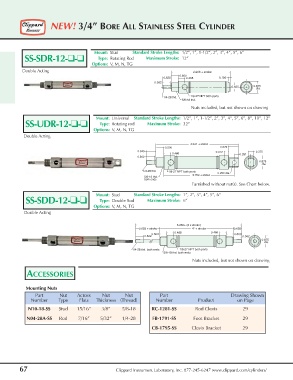

NEW! 3/4” BORE ALL STAINLESS STEEL CYLINDER

Mount: Stud Standard Stroke Lengths: 1/2”, 1”, 1-1/2”, 2”, 3”, 4”, 5”, 6”
SS-SDR-12-❑-❑ Type: Rotating Rod
Maximum Stroke: 12”
Options: V, M, N, TG
Double Acting 2.968 + stroke
0.500
0.625 0.468 0.156
0.562
0.625 0.875
dia.
1/4-28 thd. 1/8-27 NPT both ports
5/8-18 thd.
Nuts included, but not shown on drawing
Mount: Universal Standard Stroke Lengths: 1/2”, 1”, 1-1/2”, 2”, 3”, 4”, 5”, 6”, 8”, 10”, 12”
SS-UDR-12-❑-❑ Type: Rotating rod
Maximum Stroke: 32”
Options: V, M, N, TG
Double Acting
4.031 + stroke
0.500 0.625
0.625 0.312 0.375
0.468 0.281
0.562
0.875
dia.
1/4-28 thd. 1/8-27 NPT both ports 0.250 dia.
3.750 + stroke
5/8-18 thd.
both ends
Furnished without nut(s). See Chart below.
Mount: Stud Standard Stroke Lengths: 1”, 2”, 3”, 4”, 5”, 6”
SS-SDD-12-❑-❑ Type: Double Rod
Maximum Stroke: 6”
Options: V, M, N, TG
Double Acting

5.250+ (2 x stroke)
0.625 + stroke 4" + stroke 0.625
0.468 0.468
0.500 0.500
0.562 0.562
0.875
dia.
1/4-28 thd. both ends 1/8-27 NPT both ports
5/8-18 thd. both ends
Nuts included, but not shown on drawing

ACCESSORIES

Mounting Nuts
Part Nut Across Nut Nut Part Drawing Shown
Number Type Flats Thickness (Thread) Number Product on Page
N10-18-SS Stud 15/16” 3/8” 5/8-18 RC-1281-SS Rod Clevis 29
N04-28A-SS Rod 7/16” 5/32” 1/4-28 FB-1791-SS Foot Bracket 29

CB-1795-SS Clevis Bracket 29
