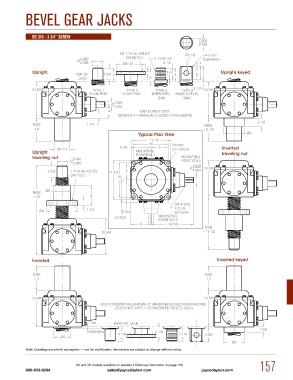

BEVEL gEAR JACKS
BG 375 - 3 3/4" SCREW
Upright Upright keyed
Typical Plan View
Inverted
Upright traveling nut
traveling nut
Inverted Inverted keyed
Note: Drawings are artist’s conception — not for certification; dimensions are subject to change without notice.
2D and 3D models available on website • Ordering information on page 150 157
