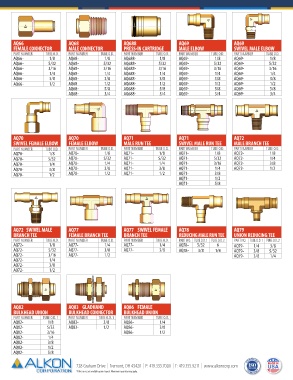

Page 2 - Alkon - Brass Push-In Fittings Ordering Guide

AQ66 AQ68 AQ688 AQ69 AQ69
FEMALE CONNECTOR MALE CONNECTOR PRESS-IN CARTRIDGE MALE ELBOW SWIVEL MALE ELBOW
PART NUMBER TUBE O.D. PART NUMBER TUBE O.D. PART NUMBER TUBE O.D. PART NUMBER TUBE O.D. PART NUMBER TUBE O.D.
AQ66- 1/8 AQ68- 1/8 AQ688- 1/8 AQ69- 1/8 AQ69- 1/8
AQ66- 5/32 AQ68- 5/32 AQ688- 5/32 AQ69- 5/32 AQ69- 5/32
AQ66- 3/16 AQ68- 3/16 AQ688- 3/16 AQ69- 3/16 AQ69- 3/16
AQ66- 1/4 AQ68- 1/4 AQ688- 1/4 AQ69- 1/4 AQ69- 1/4
AQ66- 3/8 AQ68- 3/8 AQ688- 3/8 AQ69- 3/8 AQ69- 3/8
AQ66- 1/2 AQ68 1/2 AQ688- 1/2 AQ69- 1/2 AQ69- 1/2
AQ68- 5/8 AQ688- 5/8 AQ69- 5/8 AQ69- 5/8
AQ68- 3/4 AQ688- 3/4 AQ69- 3/4 AQ69- 3/4

AQ70 AQ70 AQ71 AQ71 AQ72
SWIVEL FEMALE ELBOW FEMALE ELBOW MALE RUN TEE SWIVEL MALE RUN TEE MALE BRANCH TEE
PART NUMBER TUBE O.D. PART NUMBER TUBE O.D. PART NUMBER TUBE O.D. PART NUMBER TUBE O.D. PART NUMBER TUBE O.D.
AQ70- 1/8 AQ70- 1/8 AQ71- 1/8 AQ71- 1/8 AQ72- 1/8
AQ70- 5/32 AQ70- 5/32 AQ71- 5/32 AQ71- 5/32 AQ72- 1/4
AQ70- 1/4 AQ70- 1/4 AQ71- 1/4 AQ71- 3/16 AQ72- 3/8
AQ70- 3/8 AQ70- 3/8 AQ71- 3/8 AQ71- 1/4 AQ72- 1/2
AQ70- 1/2 AQ70- 1/2 AQ71- 1/2 AQ71- 3/8
AQ71- 1/2
AQ71- 5/8

AQ72 SWIVEL MALE AQ77 AQ77 SWIVEL FEMALE AQ78 AQ79
BRANCH TEE FEMALE BRANCH TEE BRANCH TEE REDUCING MALE RUN TEE UNION REDUCING TEE
PART NUMBER TUBE O.D. PART NUMBER TUBE O.D. PART NUMBER TUBE O.D. PART NO. TUBE O.D. 1 TUBE O.D. 2 PART NO. TUBE O.D. 1 TUBE O.D. 2
AQ72- 1/8 AQ77- 1/4 AQ77- 1/4 AQ78- 5/32 6 AQ79- 1/4 3/8
AQ72- 5/32 AQ77- 3/8 AQ77- 3/8 AQ78- 3/8 1/4 AQ79- 3/8 5/32
AQ72- 3/16 AQ77- 1/2 AQ79- 3/8 1/4
AQ72- 1/4
AQ72- 3/8
AQ72- 1/2

AQ82 AQ83 GLADHAND AQ86 FEMALE
BULKHEAD UNION BULKHEAD CONNECTOR BULKHEAD UNION
PART NUMBER TUBE O.D. 1 PART NUMBER TUBE O.D. 1 PART NUMBER TUBE O.D.
AQ82- 1/8 AQ83- 3/8 AQ86- 1/4
AQ82- 5/32 AQ83- 1/2 AQ86- 3/8
AQ82- 3/16 AQ86- 1/2
AQ82- 1/4
AQ82- 3/8
AQ82- 1/2
AQ82- 5/8

728 Graham Drive | Fremont, OH 43420 | P: 419.333.7000 | F: 419.355.9211 | www.alkoncorp.com
*Other sizes are available upon request. Minimum quantity may apply.
