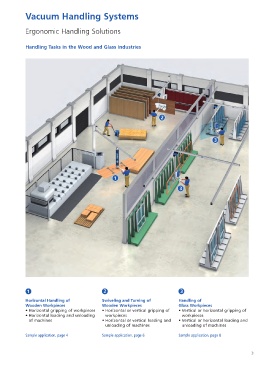

Vacuum Handling Systems

Ergonomic Handling Solutions

Handling Tasks in the Wood and Glass Industries

2

3

1

3

1 2 3
Horizontal Handling of Swiveling and Turning of Handling of
Wooden Workpieces Wooden Workpieces Glass Workpieces
• Horizontal gripping of workpieces • Horizontal or vertical gripping of • Vertical or horizontal gripping of
• Horizontal loading and unloading workpieces workpieces
of machines • Horizontal or vertical loading and • Vertical or horizontal loading and
unloading of machines unloading of machines

Sample application, page 4 Sample application, page 6 Sample application, page 8
