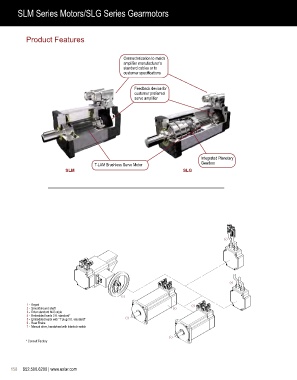

SLM Series Motors/SLG Series Gearmotors
Product Features
Connectorization to match
amplifier manufacturer’s
standard cables or to
customer specifications
Feedback device for
customer preferred
servo amplifier
Integrated Planetary
T-LAM Brushless Servo Motor Gearbox
SLM SLG
5
4
7
1 - Keyed 3
2 - Smooth/round shaft 6
3 - Exlar standard M23 style
4 - Embedded leads 3 ft. standard*
5 - Embedded leads with “I” plug 3 ft. standard* 2
6 - Rear Brake
7 - Manual drive, handwheel with lnterlock switch
1
* Consult Factory
