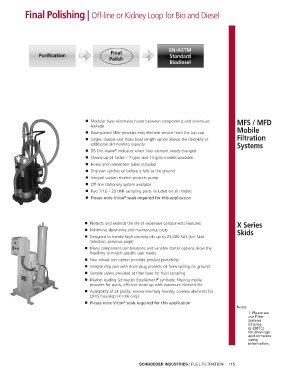

Page 115 - Schroeder - Fuel Filtration

Final Polishing | High Efficiency Particulate Filtration for Bio & Diesel Fuel Final Polishing | Off-line or Kidney Loop for Bio and Diesel

■ Base-ported in-line filter available in three different lengths ■ Modular base eliminates hoses between components and minimizes MFS / MFD
leakage
■ Extremely versatile multiple inlet and outlet porting possibilities Mobile
■ Base-ported filter provides easy element service from the top cap
■ Stacked K-size elements require less than 9” clearance to change
elements ■ Single, double and triple bowl length option allows the flexibility of Filtration
additional dirt-holding capacity
■ Available with cleanable metal mesh or high efficiency synthetic Systems
Excellement elements ■ D5 Dirt Alarm indicates when filter element needs changed
®
®
■ Please note Viton seals required for this application ■ Cleans up oil faster – 7 gpm and 14 gpm models available
®
■ Hoses and connection tubes included
■ Drip pan catches oil before it falls to the ground
■ Integral suction strainer protects pump
■ Off-line stationary system available
■ Two 7/16 – 20 UNF sampling ports included on all models
■ Please note Viton seals required for this application
®

■ Element changeout from the top minimizes oil spillage ■ Protects and extends the life of expensive components Features X Series
■ Available with optional core assembly to accommodate ■ Minimizes downtime and maintenance costs Skids
coreless elements ■ Designed to handle high viscosity oils up to 25,000 SUS (see Skid
■ Offered with standard Q, QPML deep-plated and QCLQF coreless Selection; previous page)
elements in 16" and 39" lengths with standard Viton seals ■ Many component combinations and variable starter options allow the
®
■ Offered in pipe, SAE straight thread, and flange porting flexibility to match specific user needs
■ Integral inlet and outlet test points are standard in all models ■ Four wheel cart option provides product portability
■ WQF5 model for water service also available ■ Integral drip pan with drain plug protects oil from spilling on ground
■ Various Dirt Alarm options ■ Sample valves provided at filter base for fluid sampling
®
■ Market leading Schroeder Excellement synthetic filtering media
®
provides for quick, efficient clean up with maximum element life
■ Availability of all plastic, environmentally friendly, coreless elements for
QF15 housings (X1-X6 only)
■ Please note Viton seals required for this application
®
Notes:
1. Please see
our Filter
Systems
Catalog
(L-2681C)
for drawings
and complete
sizing
information.

SCHROEDER INDUSTRIES | FUEL FILTRATION 115
