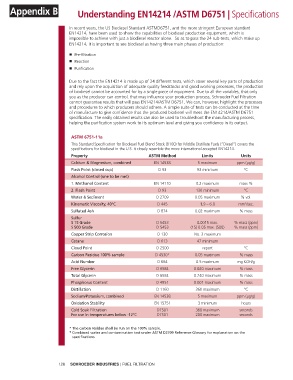

Appendix B Understanding EN14214 /ASTM D6751 | Specifications Understanding EN14214 /ASTM D6751 | Specifications

In recent years, the US Biodiesel Standard ASTMD6751, and the more stringent European standard
EN14214, have been used to show the capabilities of biodiesel production equipment, which is
impossible to achieve with just a biodiesel reactor alone. So as to pass the 24 sub-tests, which make up
EN14214, it is important to see biodiesel as having three main phases of production:

■ Pre-filtration
■ Reaction
■ Purification

Due to the fact the EN14214 is made up of 24 different tests, which cover several key parts of production
and rely upon the acquisition of adequate quality feedstocks and good working processes, the production
of biodiesel cannot be accounted for by a single piece of equipment. Due to all the variables, that only
you as the producer can control, that may influence your production process, Schroeder Fuel Filtration
cannot guarantee results that will pass EN14214/ASTM D6751. We can, however, highlight the processes
and procedures to which producers should adhere. A simple suite of tests can be conducted at the time
of manufacture to give confidence that the produced biodiesel will meet the EN14214/ASTM D6751
specification. The easily obtained results can also be used to troubleshoot the manufacturing process,
helping the purification system work to its optimum level and giving you confidence in its output.

ASTM 6751-11a
This Standard Specification for Biodiesel Fuel Blend Stock (B100) for Middle Distillate Fuels (“Diesel”) covers the
specifications for biodiesel in the U.S. it closely resemble the more international accepted EN14214.
Property ASTM Method Limits Units
Calcium & Magnesium, combined EN 14538 5 maximum ppm (µg/g)
Flash Point (closed cup) D 93 93 minimum °C
Alcohol Control (one to be met)
1. Methanol Content EN 14110 0.2 maximum mass %
2. Flash Point D 93 130 minimum °C
Water & Sediment D 2709 0.05 maximum % vol.
Kinematic Viscosity, 40°C D 445 1.9 – 6.0 mm /sec.
2
Sulfated Ash D 874 0.02 maximum % mass
Sulfur
S 15 Grade D 5453 0.0015 max. % mass (ppm)
S 500 Grade D 5453 (15) 0.05 max. (500) % mass (ppm)
Copper Strip Corrosion D 130 No. 3 maximum
Cetane D 613 47 minimum
Cloud Point D 2500 report °C
Carbon Residue 100% sample D 4530* 0.05 maximum % mass
Acid Number D 664 0.5 maximum mg KOH/g
Free Glycerin D 6584 0.020 maximum % mass
Total Glycerin D 6584 0.240 maximum % mass
Phosphorus Content D 4951 0.001 maximum % mass
Distillation D 1160 360 maximum °C
Sodium/Potassium, combined EN 14538 5 maximum ppm (µg/g)
Oxidation Stability EN 15751 3 minimum hours
Cold Soak Filtration D7501 360 maximum seconds
For use in temperatures below -12°C D7501 200 maximum seconds

* The carbon residue shall be run on the 100% sample.
* Combined water and contamination test under ASTM D2709 Reference Glossary for explanation on the
specifications
