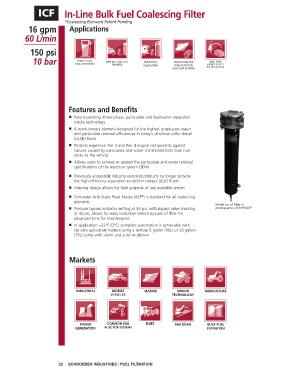

ICF In-Line Bulk Fuel Coalescing Filter

*Coalescing Elements Patent Pending
16 gpm Applications

60 L/min

150 psi

10 bar

Features and Benefits

■ Patent-pending, three-phase, particulate and fuel/water separation
media technology
■ A revolutionary element designed for the highest single-pass water
and particulate removal efficiencies in today’s ultra-low sulfur diesel
(ULSD) fluids
■ Protects expensive Tier 3 and Tier 4 engine components against
failures caused by particulate and water transferred from bulk fuel
tanks to the vehicle
■ Allows users to achieve or exceed the particulate and water removal
specifications of the injection system OEMs
■ Previously acceptable industry standard products no longer provide
the high-efficiency separation needed in today’s ULSD fluids
■ Housing design allows for field upgrade of any available option

■ Schroeder Anti-Static Pleat Media (ASP ) is standard for all coalescing
®
elements
Model no. of filter in
■ Pressure bypass indicator setting at 36 psi, with bypass valve cracking photograph is: ICFVP24LEP
at 40 psi, allows for early indication before by-pass of filter for
advanced time for maintenance
■ In application >32°F (0°C) complete automation is achievable with
fail-safe auto-drain feature using a remote 5 gallon (18L) or 20 gallon
(75L) sump with alarm and auto shutdown

Markets
