HDP-BC On-Board Diesel Fuel Coalescing Filter | Manual Drain On-Board Diesel Fuel Coalescing Filter | Automatic Drain

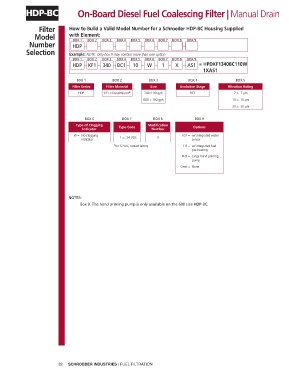

Filter How to Build a Valid Model Number for a Schroeder HDP-BC Housing Supplied
Model with Element: BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 BOX 9
BOX 2
BOX 1
Number HDP – – – – – – – –
Selection Example: NOTE: Only box 9 may contain more than one option
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 BOX 9
HDP – KF1 – 340 – BC1 – 10 – W – 1 – X – AS1 = HPDKF1340BC110W
1XAS1
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5
Filter Series Filter Material Size Evolution Stage Filtration Rating
HDP KF1 = Dieselmicron ® 340 = 90 gph BC1 7 = 7 μm
600 = 160 gph 10 = 10 μm
30 = 30 μm

BOX 6 BOX 7 BOX 8 BOX 9
Type of Clogging Type Code Modification Options
Indicator Number
W = No clogging AS1 = w/ integrated water
indicator 1 = 24 VDC X sensor
*for 12 VDC, contact factory H1 = w/ integrated fuel
pre-heating
PH3 = Large hand priming
pump
Omit = None

NOTES:
Box 9. The hand priming pump is only available on the 600 size HDP-BC.
