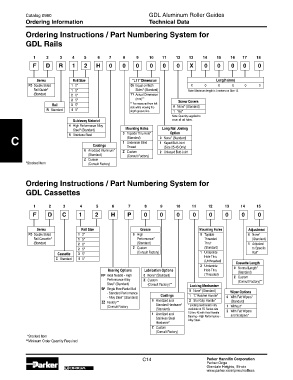

Page 142 - Parker - OSP-P Pneumatic Rodless Cylinders and Linear Guides

Catalog 0980 GDL Aluminum Roller Guides
Ordering Information Technical Data

Ordering Instructions / Part Numbering System for
GDL Rails

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
F D R 1 2 H 0 0 0 0 0 0 X 0 0 0 0 0

Series Rail Size “L11” Dimension Length (mm)
FD Double Sided 1 2* 00 Equal on Both X 0 0 0 0 0
Rail Guide* 1 5* Sides* (Standard) Note: Maximum length is 4 meters on Size 12.
(Standard 2 0* ?? Actual Dimension
2 5* (mm)** Screw Covers
Rail 3 5* ** As measured from left 0 None* (Standard)
R Standard 4 5* side while viewing the 1 Yes*
depth groove line.
Note: Quantity supplied to
Guideway Material cover all rail holes.
H High Performance Alloy
Mounting Holes
Steel* (Standard) 0 Topside Thru Hole* Long Rail Joining
Option
C S Stainless Steel Coatings 1 Underside Blind 0 None* (Standard)
(Standard)
1 Keyed Butt Joint
(Size 25-45 Only)
Thread
0 Anodized Aluminum* Z Custom 2 Unkeyed Butt Joint
(Standard) (Consult Factory)
Z Custom
*Stocked Item (Consult Factory)
Ordering Instructions / Part Numbering System for

GDL Cassettes

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
F D C 1 2 H P 0 0 0 0 0 0 0 0

Series Rail Size Grease Mounting Holes Adjustment
FD Double Sided 1 2* 0 High 0 Topside 0 None*
Rail Cassette* 1 5* Performance* Threaded (Standard)
(Standard 2 0* (Standard) Thru* 1 Adjusted
2 5* Z Custom (Standard) to Specific
Cassette 3 5* (Consult Factory) 1 Underside Rail*
C Standard 4 5* Hole Thru
(Unthreaded) Cassette Length
2 Underside
Bearing Options Lubrication Options Hole Thru 0 Normal Length*
(Standard)
HP Axial Needle - High 0 None* (Standard) (Threaded) Z Custom
Performance Alloy Z Custom (Consult Factory)**
Steel* (Standard) (Consult Factory)** Locking Mechanism
SP Single Row Radial Ball 0 None* (Standard)
- Standard Performance Wiper Options
- Alloy Steel* (Standard) Coatings 1 “L” Ratchet Handle* 0 With Felt Wipers*
ZZ Factory** 0 Anodized and 2 Star Grip Handle* (Standard)
(Consult Factory Standard Hardware* * Locking mechanism only 1 Without*
(Standard) available on FD Series size 2 With Felt Wipers
1 Anodized and 15 thru 45 with Axial Needle and Scrapers*
Bearing - High Performance -
Stainless Steel Alloy Steel.
Hardware*
Z Custom
(Consult Factory)
**Stocked Item
**Minimum Order Quantity Required
