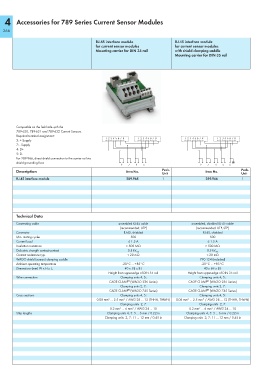

4 Accessories for 789 Series Current Sensor Modules

266
RJ-45 interface module RJ-45 interface module
for current sensor modules for current sensor modules
Mounting carrier for DIN 35 rail with shield clamping saddle
Mounting carrier for DIN 35 rail

Compatible on the field side with the
789-620, 789-621 and 789-622 Current Sensors.
Required terminal assignment:
12345678 12345678 12345678 12345678
2: + Supply
7: - Supply
4: D+
5: D-
For 289-966, direct shield connection to the carrier rail via
shield grounding foot.
2 7 4 5 2 7 4 5 S
Description Item No. Pack. Item No. Pack.
Unit Unit
RJ-45 interface module 289-965 1 289-966 1

Technical Data

Connecting cable assembled RJ-45 cable assembled, shielded RJ-45 cable
(recommended: UTP) (recommended: UTP, STP)
Connector RJ-45, shielded RJ-45, shielded
Min. mating cycles 500 500
Current load ≤ 1.5 A ≤ 1.5 A
Insulation resistance > 500 MΩ > 500 MΩ
Dielectric strength contact-contact 0.5 kV rms 0.5 kV rms
Contact resistance typ. < 20 mΩ < 20 mΩ
WAGO shield (screen) clamping saddle 790-124 (included)
Ambient operating temperature -20°C ... +85°C -20°C ... +85°C
Dimensions (mm) W x H x L, 40 x 58 x 85 40 x 69 x 85
Height from upper-edge of DIN 35 rail Height from upper-edge of DIN 35 rail
Wire connection Clamping units 4, 5: Clamping units 4, 5:
®
®
CAGE CLAMP (WAGO 236 Series) CAGE CLAMP (WAGO 236 Series)
Clamping units 2, 7: Clamping units 2, 7:
®
®
CAGE CLAMP (WAGO 745 Series) CAGE CLAMP (WAGO 745 Series)
Cross sections Clamping units 4, 5: Clamping units 4, 5:
0.08 mm² ... 2.5 mm² / AWG 28 ... 12 (THHN, THWN) 0.08 mm² ... 2.5 mm² / AWG 28 ... 12 (THHN, THWN)
Clamping units 2, 7: Clamping units 2, 7:
0.2 mm² ... 6 mm² / AWG 24 ... 10 0.2 mm² ... 6 mm² / AWG 24 ... 10
Strip lengths Clamping units 4, 5: 5 ... 6 mm / 0.22 in Clamping units 4, 5: 5 ... 6 mm / 0.22 in
Clamping units 2, 7: 11 ... 12 mm / 0.45 in Clamping units 2, 7: 11 ... 12 mm / 0.45 in
