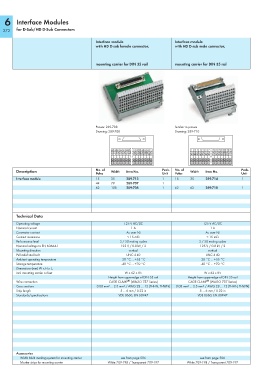

Page 374 - Wagp_InterfaceElectronic_Volume4_2015_US.pdf

6 Interface Modules

for D-Sub/HD D-Sub Connectors
372
Interface module Interface module
with HD D-sub female connector, with HD D-sub male connector,

mounting carrier for DIN 35 rail mounting carrier for DIN 35 rail

Picture: 289-708 Similiar to picture
Drawing: 289-708 Drawing: 289-710

43 44 45 46 47 48 49 57 58 59 60 61 62 S 1 2 3 4 5 6 7 1 5 1 6 1 7 1 8 1 9 2 0 2 1
22 23 24 25 26 27 28 36 37 38 39 40 41 42 22 23 24 25 26 27 28 36 37 38 39 40 41 42
1 2 3 4 5 6 7 1 5 1 6 1 7 1 8 1 9 2 0 2 1 43 44 45 46 47 48 49 57 58 59 60 61 62 S

Description No. of Width Item No. Pack. No. of Width Item No. Pack.
Poles Unit Poles Unit
Interface module 15 35 289-713 1 15 35 289-714 1
44 79 289-707 1
62 108 289-708 1 62 62 289-710 1

Technical Data

Operating voltage 125 V AC/DC 125 V AC/DC
Nominal current 1 A 1 A
Connector contact Au over Ni Au over Ni
Contact resistance ≤ 15 mΩ ≤ 15 mΩ
Performance level 3 / 50 mating cycles 3 / 50 mating cycles
Nominal voltage to EN 60664-1 125 V / 0.8 kV / 2 125 V / 0.8 kV / 2
Mounting direction vertical vertical
Pull relief stud bolt UNC 4-40 UNC 4-40
Ambient operating temperature -20 °C ... +55 °C -20 °C ... +55 °C
Storage temperature -40 °C ... +70 °C -40 °C ... +70 °C
Dimensions (mm) W x H x L,
incl. mounting carrier or feet W x 62 x 85 W x 62 x 85
Height from upper-edge of DIN 35 rail Height from upper-edge of DIN 35 rail
®
®
Wire connection CAGE CLAMP (WAGO 737 Series) CAGE CLAMP (WAGO 737 Series)
Cross sections 0.08 mm² ... 2.5 mm² / AWG 28 ... 12 (THHN, THWN) 0.08 mm² ... 2.5 mm² / AWG 28 ... 12 (THHN, THWN)
Strip length 5 ... 6 mm / 0.22 in 5 ... 6 mm / 0.22 in
Standards/specifications VDE 0660, EN 60947 VDE 0660, EN 60947

Accessories
WMB Multi marking system for mounting carrier see from page 506 see from page 506
Marker strips for mounting carrier White 709-198 / Transparent 709-197 White 709-198 / Transparent 709-197
