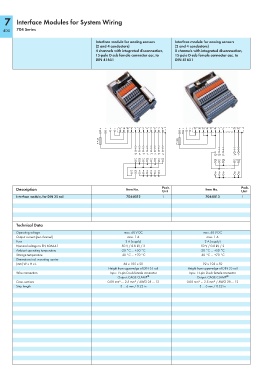

Page 402 - Wagp_InterfaceElectronic_Volume4_2015_US.pdf

7 Interface Modules for System Wiring

704 Series
400
Interface module for analog sensors Interface module for analog sensors
(2 and 4 conductors) (2 and 4 conductors)
4 channels with integrated disconnection, 8 channels with integrated disconnection,
15-pole D-sub female connector acc. to 15-pole D-sub female connector acc. to
DIN 41651 DIN 41651

Description Item No. Pack. Item No. Pack.
Unit
Unit
Interface module, for DIN 35 rail 704-8012 1 704-8013 1

Technical Data
Operating voltage max. 48 V DC max. 48 V DC
Output current (per channel) max. 1 A max. 1 A
Fuse 2 A (supply) 2 A (supply)
Nominal voltage to EN 60664-1 50 V / 0.8 kV / 2 50 V / 0.8 kV / 2
Ambient operating temperature -20 °C … +50 °C -20 °C … +50 °C
Storage temperature -40 °C … +70 °C -40 °C … +70 °C
Dimensions incl. mounting carrier
(mm) W x H x L 66 x 105 x 50 92 x 105 x 50
Height from upper-edge of DIN 35 rail Height from upper-edge of DIN 35 rail
Wire connection Inpu: 15-pin D-sub female connector Inpu: 15-pin D-sub female connector
Output: CAGE CLAMP ® Output: CAGE CLAMP ®
Cross sections 0.08 mm² … 2.5 mm² / AWG 28 ... 12 0.08 mm² … 2.5 mm² / AWG 28 ... 12
Strip length 5 … 6 mm / 0.22 in 5 … 6 mm / 0.22 in
