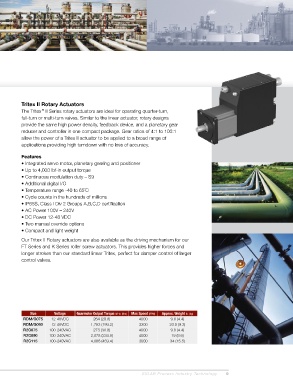

Tritex II Rotary Actuators
™
The Tritex II Series rotary actuators are ideal for operating quarter-turn,
full-turn or multi-turn valves. Similar to the linear actuator, rotary designs
provide the same high power density, feedback device, and a planetary gear
reducer and controller in one compact package. Gear ratios of 4:1 to 100:1
allow the power of a Tritex II actuator to be applied to a broad range of
applications providing high turndown with no loss of accuracy.

Features
• Integrated servo motor, planetary gearing and positioner
• Up to 4,000 lbf-in output torque
• Continuous modulation duty – S9
• Additional digital I/O
• Temperature range -40 to 65˚C
• Cycle counts in the hundreds of millions
• IP65S, Class I Div 2 Groups A,B,C,D certification
• AC Power 100V – 240V
• DC Power 12-48 VDC
• Two manual override options
• Compact and light weight

Our Tritex II Rotary actuators are also available as the driving mechanism for our
FT Series and K Series roller screw actuators. This provides higher forces and
longer strokes than our standard linear Tritex, perfect for damper control of larger
control valves.

Size Voltage Gearmotor Output Torque lbf-in. (Nm) Max Speed (RPM) Approx. Weight lb. (kg)
RDM/G075 12-48VDC 264 (29.8) 4000 9.8 (4.4)
RDM/G090 12-48VDC 1,763 (199.2) 3300 20.5 (9.3)
R2G075 100-240VAC 273 (30.8) 4000 9.8 (4.4)
R2G090 100-240VAC 2,078 (234.8) 4000 19 (8.6)
R2G115 100-240VAC 4,066 (459.4) 3000 34 (15.5)
