BREATHERS BREATHERS

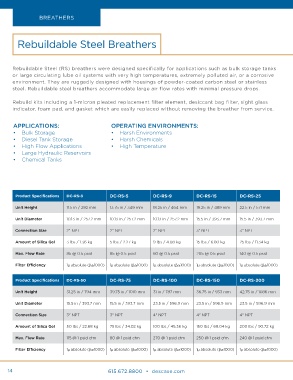

Rebuildable Steel Breathers
Rebuildable Steel (RS) breathers were designed specifically for applications such as bulk storage tanks
or large circulating lube oil systems with very high temperatures, extremely polluted air, or a corrosive
environment. They are ruggedly designed with housings of powder-coated carbon steel or stainless
steel. Rebuildable steel breathers accommodate large air flow rates with minimal pressure drops.
Rebuild kits including a 1-micron pleated replacement filter element, desiccant bag filter, sight glass
indicator, foam pad, and gasket which are easily replaced without removing the breather from service.
APPLICATIONS: OPERATING ENVIRONMENTS: REBUILDABLE STEEL BREATHER KITS (DC-RS-X-RK):
• Bulk Storage • Harsh Environments Note: Substitute the appropriate RS model number for the “X” in the rebuild kit part number. (Ex. DC-RS-3-RK)
• Diesel Tank Storage • Harsh Chemicals • Rebuild kits are available in a variety of materials to meet chemical compatibility needs.
• High Flow Applications • High Temperature • Desiccant bags above an RS-25 are packaged in 25 lb increments for easy handling.
• Large Hydraulic Reservoirs • Des-Case recommends use of a pressure/relief valve on any tank or storage system.
• Chemical Tanks
REPLACEMENT DESICCANT SIGHT GLASS
FILTER ELEMENT BAG FILTER INDICATOR
Product Specifications DC-RS-3 DC-RS-5 DC-RS-9 DC-RS-15 DC-RS-25
Unit Height 11.5 in / 292 mm 13.75 in / 349 mm 18.25 in / 464 mm 19.25 in / 489 mm 22.5 in / 571 mm
Unit Diameter 10.13 in / 257.2 mm 10.13 in / 257.2 mm 10.13 in / 257.2 mm 15.5 in / 393.7 mm 15.5 in / 393.7 mm
GASKET FOAM PAD
Connection Size 2" NPT 2" NPT 2" NPT 3" NPT 3" NPT
Amount of Silica Gel 3 lbs / 1.36 kg 5 lbs / 2.27 kg 9 lbs / 4.08 kg 15 lbs / 6.80 kg 25 lbs / 11.34 kg
Max. Flow Rate 85 @ 0.5 psid 85 @ 0.5 psid 80 @ 0.5 psid 205 @ 0.5 psid 140 @ 0.5 psid
Filter Efficiency 1µ absolute (β₁≥1000) 1µ absolute (β₁≥1000) 1µ absolute (β₁≥1000) 1µ absolute (β₁≥1000) 1µ absolute (β₁≥1000)
Product Specifications DC-RS-50 DC-RS-75 DC-RS-100 DC-RS-150 DC-RS-200
Unit Height 31.25 in / 794 mm 39.75 in / 1010 mm 31 in / 787 mm 36.75 in / 933 mm 42.75 in / 1086 mm
Unit Diameter 15.5 in / 393.7 mm 15.5 in / 393.7 mm 23.5 in / 596.9 mm 23.5 in / 596.9 mm 23.5 in / 596.9 mm
Connection Size 3" NPT 3" NPT 4" NPT 4" NPT 4" NPT
Amount of Silica Gel 50 lbs / 22.68 kg 75 lbs / 34.02 kg 100 lbs / 45.36 kg 150 lbs / 68.04 kg 200 lbs / 90.72 kg
Max. Flow Rate 115 @ 1 psid cfm 80 @ 1 psid cfm 270 @ 1 psid cfm 250 @ 1 psid cfm 240 @ 1 psid cfm
Full product specifications are available at descase.com.
Filter Efficiency 1µ absolute (β₁≥1000) 1µ absolute (β₁≥1000) 1µ absolute (β₁≥1000) 1µ absolute (β₁≥1000) 1µ absolute (β₁≥1000)
