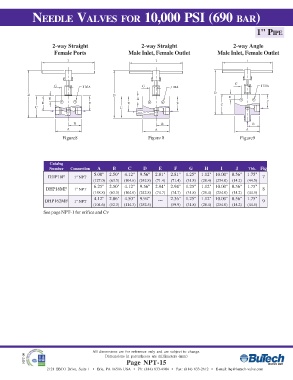

NEEDLE VALVES FOR 10,000 PSI (690 BAR)

1" PIPE

2-way Straight 2-way Straight 2-way Angle
Female Ports Male Inlet, Female Outlet Male Inlet, Female Outlet
I I I

G
G G J DIA
J DIA J DIA
D
D D
H H H
F
E F E F C
C C
B B B
A A A
Figure8 Figure 8 Figure9

Catalog
Number Connection A B C D E F G H I J Thk. Fig
5.00" 2.50" 4.12" 9.56" 2.81" 2.81" 1.25" 1.12" 10.00" 0.56" 1.75"
DHP16F 1" NPT 7
(127.0) (63.5) (104.6) (242.8) (71.4) (71.4) (31.8) (28.4) (254.0) (14.2) (44.5)
6.25" 2.50" 4.12" 9.56" 2.94" 2.94" 1.25" 1.12" 10.00" 0.56" 1.75"
DHP16MF 1" NPT 8
(158.8) (63.5) (104.6) (242.8) (74.7) (74.7) (31.8) (28.4) (254.0) (14.2) (44.5)
4.12" 2.06" 4.50" 9.94" 2.36" 1.25" 1.12" 10.00" 0.56" 1.75"
DHP162MF 1" NPT --- 9
(104.6) (52.3) (114.3) (252.5) (59.9) (31.8) (28.4) (254.0) (14.2) (44.5)
See page NPT-1 for orifice and Cv

All dimensions are for reference only and are subject to change.
NPT-09 Dimensions in parentheses are millimeters (mm)
Page NPT-15
