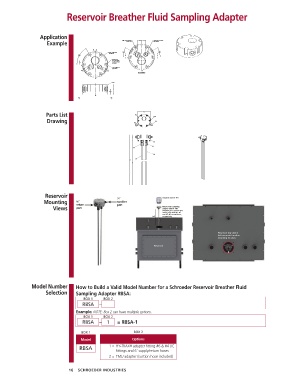

Reservoir Breather Fluid Sampling Adapter

Application
Example DRILL .56 X .69 DEEP .49 .54 DRILL .44 X .69 DEEP
TAP 1/4" NPT
TAP 3/8" NPT
B C
DRILL .906 THRU 30° REF REF 30°
TAP 3/4" NPT
60° REF .28 .31
C L
.201 THRU
ON A 2.875 B.C.
.50 EQUALLY SPACED
(6) PLACES
C L
R.22 X .875 DEEP
(6) PLACES
B C C L
SECTION A-A
C L
R.06
1.25
.69 REF
C L
A A
Parts List 1 3.25 9 6X
Drawing 6 7
1.25
8
4
2
5
25.25 3
24.00

Reservoir ¼” Breather with ¾” NPT.
Mounting ⅜” suction
port
return
Views port RBSA 6 bolt sampling
adapter with ¾” NPT
breather port. Suction and
return ports with ⅜” JIC
and ¼” JIC connections,
24” respectively.
Reservoir top view 6
bolt reservoir breather
mounting location.
Reservoir

Model Number How to Build a Valid Model Number for a Schroeder Reservoir Breather Fluid
Selection Sampling Adapter RBSA:
BOX 1 BOX 2
RBSA –

Example: NOTE: Box 2 can have multiple options.
BOX 1 BOX 2
RBSA – 1 = RBSA-1

BOX 1 BOX 2
Model Options
RBSA 1 = HY-TRAX ® adapter fitting #6 & #4 JIC
fittings and 6’ supply/return hoses
2 = TMU adapter (suction hose included)
