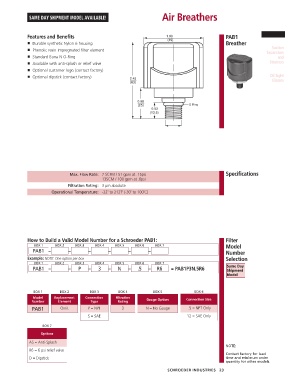

Page 25 - Schroeder - Accessories

SAME DAY SHIPMENT MODEL AVAILABLE! Air Breathers

Features and Benefits 1.93 PAB1 Air Breathers
(49)
■ Durable synthetic Nylon 6 housing Breather
Suction
■ Phenolic resin impregnated filter element
Separators
■ Standard Buna N O-Ring and
■ Available with anti-splash or relief valve Strainers
■ Optional customer logo (contact factory)
■ Optional dipstick (contact factory) Oil Sight
2.48 Glasses
(63)

0.98
(25) O-Ring
0.53
(13.5)

See Type of
Connection
Below

Max. Flow Rate: 7 SCFM / 51 gpm at .15psi Specifications
13SCM / 100 gpm at .6psi
Filtration Rating: 3 µm absolute
Operational Temperature: -22˚ to 212˚F (-30˚ to 100˚C)

How to Build a Valid Model Number for a Schroeder PAB1: Filter
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 Model
PAB1 – – – – – – Number

Example: NOTE: One option per box Selection
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7
PAB1 – – P – 3 – N – .5 – R6 = PAB1P3N.5R6 Same Day
Shipment
Model

BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6
Model Replacement Connection Filtration Connection Size
Number Element Type Rating Gauge Option
PAB1 Omit P = NPT 3 N = No Gauge .5 = NPT Only
S = SAE 12 = SAE Only
BOX 7
Options
AS = Anti-Splash
NOTE:
R6 = 6 psi relief valve
Contact factory for lead
D = Dipstick time and minimum order
quantity for other models.
SCHROEDER INDUSTRIES 23
