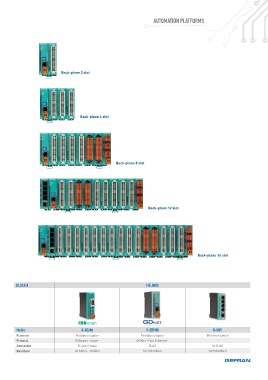

AUTOMATION PLATFORMS
Back-plane 2 slot
Back-plane 4 slot
Back-plane 8 slot
Back-plane 12 slot
Back-plane 16 slot
GILOGIK II FIELDBUS
Models R-GCANs R-ETH100 R-SW5
Function Fieldbus coupler Fieldbus coupler Ethernet switch
Protocol CANopen –slave - GDNet –Fast Ethernet- -
Connector D-sub 9 male RJ45 5x RJ45
Baudrate 20 Kbit/s…1Mbit/s 10/100 Mbit/s 10/100 Mbit/s
