DIRECTIONAL CONTROL VALVES

Every air system is unique . . . and Clippard has the air valve you need. Clippard control valves are
available in poppet or spool design; 2-, 3-, or 4-way functions, in sizes from #3-56 and
#10-32 through 1/8” NPT ports; and for pressures to 300 psig. They are available with
solenoid, air pilot, manual and mechanical actuators. Mounting styles include in-line,
panel mount, manifold mount or clearance holes for mounting screws.
67
When designing a pneumatic system, choose the proper size for each component. A valve of
insufficient capacity may cause an entire system to operate slower than expected. Conversely,
utilizing a valve which possesses greater capacity than is actually required results in needless
size and often leads to excessive speed, impact, wear, and air consumption.

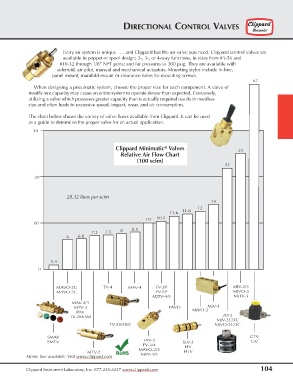

The chart below shows the variety of valve flows available from Clippard. It can be used
as a guide to determine the proper valve for an actual application.

30

®
Clippard Minimatic Valves 25
Relative Air Flow Chart
(100 scfm)
22

20

28.32 liters per scfm
14
12
11.8
11.6
10 10.5
10
7.3 7.5 8 8.5
6 6.8
12

1.4
0

MAVO-2C TV-4 MAV-4 FV-3P MJV-2/3
MAVO-3C FV-5P MJVO-3
MJTV-4/5 MJTV-3
MAV-2/3
MTV-3 PAVO MJVO-2 MJV-4
PAV
TV-2M/3M 2012
MJV-2C/3CC
TV-2S/3S/5 MJVO-2C/3C

SMAV GTV
SMTV FTV-3 SLV-3 GV
FV-3/4 HV
MAVO-2/3
MTV-2 RoHS HTV
Metric line available. Visit www.clippard.com MTV-4/5
