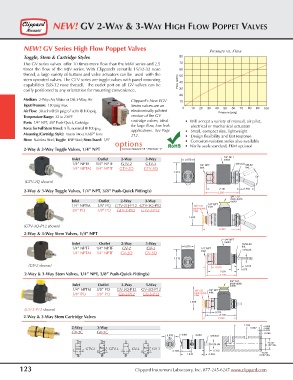

Page 21 - Clippard - Directional Control Valves

NEW! GV 2-WAY & 3-WAY HIGH FLOW POPPET VALVES

NEW! GV Series High Flow Poppet Valves
Pressure vs. Flow
Toggle, Stem & Cartridge Styles 80
The GV series valves offer 10 times more flow than the MAV series and 2.5 70
times the flow of the MJV series. With Clippard’s versatile 15/32-32 nose 60
thread, a large variety of buttons and valve actuators can be used with the 50
stem operated valves. The GTV series are toggle valves with panel mounting Flow (scfm) 40
capabilities (5/8-32 nose thread). The outlet port on all GV valves can be
easily positioned to any orientation for mounting convenience. 30
20
Medium: 2-Way: Air, Water or Oil; 3-Way: Air Clippard's New EGV 10
Input Pressure: 150 psig max. Series valves are an
0 10 20 30 40 50 60 70 80 90 100
Air Flow: 38 scfm @ 50 psig; 67 scfm @ 100 psig electronically piloted Pressure (psig)
Temperature Range: 32 to 230°F version of the GV
cartridge valves, ideal • Will accept a variety of manual, air pilot,
Ports: 1/4” NPT, 3/8” Push-Quick, Cartridge
for large flow, low leak electrical or mechanical actuators
Force for Full Stem Travel: 9 lb. nominal @ 100 psig
applications. See Page • Small, compact size, lightweight
Mounting (Cartridge Style): Inserts into a 0.687” bore 212. • Design flexibility and fast response
Stem: Stainless Steel; Toggle: ENP Steel; Stem Travel: 1/8” • Corrosion-resistant series also available
RoHS
options • Nitrile seals standard, FKM optional
2-Way & 3-Way Toggle Valves, 1/4” NPT Corrosion-Resistant “CR-” • FKM Seals “-V”
1/4” NPT
Inlet Outlet 2-Way 3-Way 0.875 outlet
1/4” NPTF 1/4” NPTF GTV-2 GTV-3 1/4” NPT exhaust 5/8-32
1/4” NPTM 1/4” NPTF GTV-2Q GTV-3Q inlet thd.
1.313
50°
(GTV-2Q shown)
2.161 0.984
2-Way & 3-Way Toggle Valves, 1/4” NPT, 3/8” Push-Quick Fitting(s) 2.286
3/8” O.D.
push-quick
Inlet Outlet 2-Way 3-Way outlet
1/4” NPTM 3/8” PQ GTV-2Q-P12 GTV-3Q-P12 3/8” O.D. 1/4” NPT
inlet
push-quick
3/8” PQ 3/8” PQ GTV-2-P12 GTV-3-P12 inlet
1.633
(GTV-3Q-P12 shown)
2.490
2-Way & 3-Way Stem Valves, 1/4” NPT
1/4” NPT
Inlet Outlet 2-Way 3-Way outlet 15/32-32
0.875 thd.
1/4” NPTF 1/4” NPTF GV-2 GV-3 1/4” NPT exhaust
inlet
1/4” NPTM 1/4” NPTF GV-2Q GV-3Q
1.313 0.186 dia.
(GV-2 shown) 0.312
0.375
0.375
2.011
2-Way & 3-Way Stem Valves, 1/4” NPT, 3/8” Push-Quick-Fitting(s) 2.136
3/8” O.D.
Inlet Outlet 2-Way 3-Way push-quick
outlet
1/4” NPTM 3/8” PQ GV-2Q-P12 GV-3Q-P12 3/8” OD 1/4” NPT
3/8” PQ 3/8” PQ GV-2-P12 GV-3-P12 push-quick inlet
inlet
1.633
(GV-3-P12 shown)
0.375
2.136
2-Way & 3-Way Stem Cartridge Valves 2.340
1.745
2-Way 3-Way 0.847 +0.003
-0.000
GV-2C GV-3C 0.039
0.066
0.678 inlet outlet exhaust
dia.
±0.002
0.186 dia. 0.732 dia.
GTV-2 3 GTV-3 GV-2 3 GV-3
1 2 2 1 1 2 2 1 0.793 0.312
±0.001
1.636 0.063 0.687 dia.
123 Clippard Instrument Laboratory, Inc. 877-245-6247 www.clippard.com
