Page 40 - Schroeder - Process Filtration

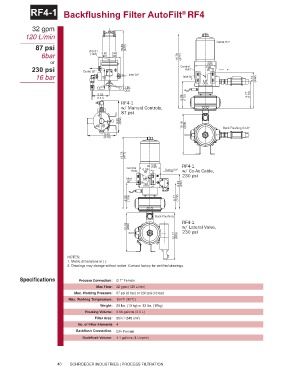

RF4-1 Backflushing Filter AutoFilt RF4
®

32 gpm
120 L/min

87 psi Ø 5.51 16.89 (429) Outlet G1"
6bar (140) 3.62 3.62 18.78 (477)
(92)
(92)
or 5.83
(148)
230 psi Outlet G1" Control 0.35
Hole
(9)
16 bar 6.3 (160) Inlet G1" Inlet G1"
4.05 9.13 (232)
(103)
1.30
(33)
5.55 6.77 (172)
(141) 6.89 (175)
RF4-1
w/ Manual Controls,
87 psi
9.92 (252)
10.16 (258) Back Flushing G 1/2"
9.45
(240)

18.78 (477)

5.83 RF4-1
Ø (148)
Control 0.35
Hole (9) Outlet G1" w/ Co-Ax Cable,
230 psi
Inlet 1.85
G1" (47)
4.05 9.13 (232)
(103)
6.89 (175) 6.77 (172)

Back Flushing
RF4-1
10.16 (258) w/ Lateral Valve,
230 psi
12.17 (309)

NOTES:
1. Metric di men sions in ( ).
2. Drawings may change without notice. Contact factory for certified drawings.

Specifications Process Connection: G 1" Female
Max Flow: 32 gpm (120 L/min)
Max. Working Pressure: 87 psi (6 bar) or 230 psi (16 bar)
Max. Working Temperature: 194°F (90°C)
Weight: 29 lbs. (13 kg) or 33 lbs. (15kg)
Housing Volume: 0.66 gallons (2.5 L)
Filter Area: 85in. (548 cm ) 2
2
No. of Filter Elements 4
Backflush Connection: G ⁄2 Female
1
Backflush Volume: 1.1 gallons (4 L/cycle)

40 SCHROEDER INDUSTRIES | PROCESS FILTRATION
