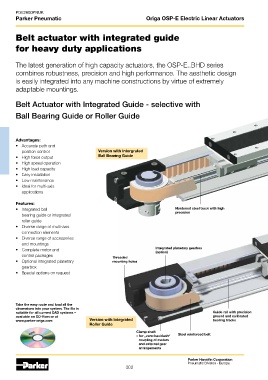

PDE2600PNUK
Parker Pneumatic Origa OSP-E Electric Linear Actuators

Belt actuator with integrated guide

for heavy duty applications

The latest generation of high capacity actuators, the OSP-E..BHD series
combines robustness, precision and high performance. The aesthetic design
is easily integrated into any machine constructions by virtue of extremely

adaptable mountings.

Belt Actuator with Integrated Guide - selective with

Ball Bearing Guide or Roller Guide

Advantages:
• Accurate path and
position control Version with Intergrated
• High force output Ball Bearing Guide
• High speed operation
• High load capacity
• Easy installation
• Low maintenance
• Ideal for multi-axis
applications

Features:
• Integrated ball Hardened steel track with high
bearing guide or integrated precision
roller guide
• Diverse range of multi-axis
connection elements
• Diverse range of accessories
and mountings
• Complete motor and Integrated planetary gearbox
control packages Threaded (option)
• Optional integrated planetary mounting holes
gearbox
• Special options on request

Take the easy route and load all the
dimensions into your system. The file is
suitable for all current CAD systems – Guide rail with precision
available on CD-Rom or at ground and calibrated
www.parker-origa.com Version with Integrated bearing tracks
Roller Guide
Clamp shaft
– for „zero-backlash“ Steel reinforced belt
coupling of motors
and external gear
arrangements

Parker Hannifin Corporation
Pneumatic Division - Europe
302
