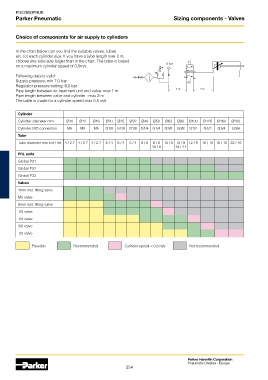

Parker Pneumatic Sizing components - Valves

Choice of components for air supply to cylinders

In the chart below can you find the suitable valves, tubes
etc. for each cylinder size. If you have a tube length over 2 m,
choose one tube size larger than in the chart. The table is based 14
on a maximum cylinder speed of 0,5m/s. 6 bar
Following data is valid: 5 4
1
3
Supply pressure: min 7,0 bar 12 2
Regulator pressure setting: 6,0 bar
Pipe length between air treatment unit and valve: max 1 m 1 m 2 m
Pipe length between valve and cylinder : max 2 m
The table is made for a cylinder speed max 0,5 m/s

Cylinder
Cylinder diameter mm Ø10 Ø12 Ø16 Ø20 Ø25 Ø32 Ø40 Ø50 Ø63 Ø80 Ø100 Ø125 Ø160 Ø200
Cylinder ISO connection M5 M5 M5 G1/8 G1/8 G1/8 G1/4 G1/4 G3/8 G3/8 G1/2 G1/2 G3/4 G3/4
Tube
Tube diameter mm Ext / Int 4 / 2.7 4 / 2.7 4 / 2.7 6 / 4 6 / 4 6 / 4 8 / 6 8 / 6 10 / 8 12 / 9 12 / 9 16 / 13 18 / 15 22 / 16
10 / 8 14 / 11
FRL units
Global P31
Global P32
Global P33
Valves
4mm inst. fitting valve
M5 valve
6mm inst. fitting valve
1/8 valve
1/4 valve
3/8 valve
1/2 valve

Possible Recommended Cylinder speed < 0,5 m/s Not recommended
