PDE2600PNUK

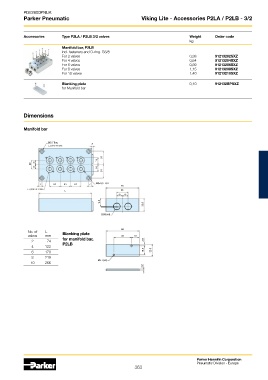

Parker Pneumatic Viking Lite - Accessories P2LA / P2LB - 3/2

Accessories Type P2LA / P2LB 3/2 valves Weight Order code
kg
Manifold bar, P2LB
incl. fasteners and O-ring. G3/8
For 2 valves 0,38 91213202SXZ
For 4 valves 0,64 91213204SXZ
For 6 valves 0,89 91213206SXZ
For 8 valves 1,15 91213208SXZ
For 10 valves 1,40 91213210SXZ

Blanking plate 0,10 912132BPSXZ
for Manifold bar

Dimensions

Manifold bar

Ø5.5 Thru 3

31
16
20
16
31

7 24 24 24 7 M3x0.5 - 6H
76
L 26
18.5
30.5

G3/8 (x4)

60
No. of L Blanking plate
valves mm 32 14
2 74 for manifold bar, 2.9
P2LB
4 122
6 170 16.5 22.3
8 218
Ø3.1 (x2)
10 266
3.2

Parker Hannifin Corporation
Pneumatic Division - Europe
363
