P. 375
PDE2600PNUK
Parker Pneumatic Metal Spool Valves - Viking Xtreme

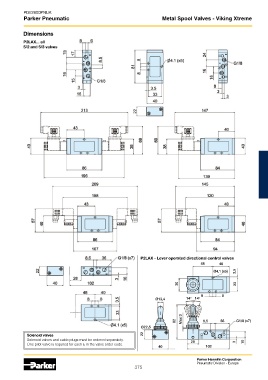

Dimensions
P2LAX... all
5/2 and 5/3 valves
P2LAX - Lever operated directional control valves
48 40
Ø4,1 (x5) 3,5
30 33
8 8
Ø13,4 14 o 14 o
Max 3
82 8,5 36 G1/8 (x7)
Ø22,5
Solenoid valves 22
Solenoid valves and cable plugs must be ordered separately. 28 3 16
One pilot valve is required for each E in the valve order code.
40 102
Parker Hannifin Corporation
Pneumatic Division - Europe
375
