P. 382
PDE2600PNUK

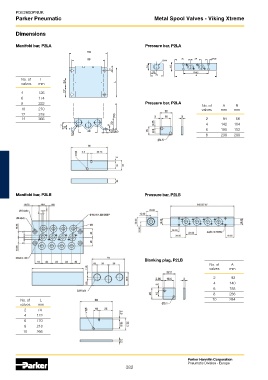

Parker Pneumatic Metal Spool Valves - Viking Xtreme
Dimensions
Manifold bar, P2LA Pressure bar, P2LA
No. of L
valves mm
4 126
6 174
8 222 Pressure bar, P2LA No. of A B
10 270 valves mm mm
12 318
14 366 2 94 56
4 142 104
6 190 152
8 238 200
Manifold bar, P2LB Pressure bar, P2LB
Blanking plug, P2LB
No. of A
valves mm
2 92
4 140
6 188
G3/8 (x6)
8 236
No. of L 10 284
valves mm
2 74
4 122
6 170
8 218
10 266
Parker Hannifin Corporation
Pneumatic Division - Europe
382
