P. 594
PDE2600PNUK

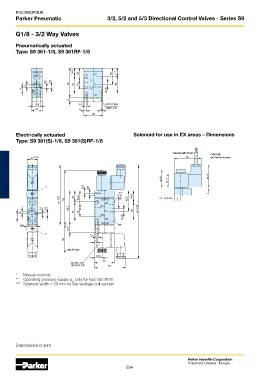

Parker Pneumatic 3/2, 5/2 and 5/3 Directional Control Valves - Series S9
G1/8 - 3/2 Way Valves
Pneumatically actuated
Type: S9 361-1/8, S9 361RF-1/8
only for type
S9361-1/8
Electrically actuated Solenoid for use in EX areas – Dimensions
Type: S9 381(S)-1/8, S9 381(S)RF-1/8
Solenoid width 30 mm Cable lenth
see Order Instructions
X = 15,5 mm
only for type
* Manual override
** Operating pressure supply p only for type S9 381S
st
*** Solenoid width = 30 mm on low wattage coil version
Dimensions in mm
Parker Hannifin Corporation
Pneumatic Division - Europe
594
