P. 606
PDE2600PNUK
Parker Pneumatic 3/2, 5/2 and 5/3 Directional Control Valves - Series S9

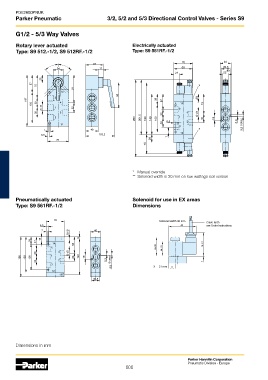

G1/2 - 5/3 Way Valves
Rotary lever actuated Electrically actuated
Type: S9 512.-1/2, S9 512RF.-1/2 Type: S9 581RF.-1/2
6 deep
* Manual override
** Solenoid width is 30 mm on low wattage coil version
Pneumatically actuated Solenoid for use in EX areas
Type: S9 561RF.-1/2 Dimensions
Solenoid width 30 mm Cable lenth
see Order Instructions
6 deep
X = 21 mm
Dimensions in mm
Parker Hannifin Corporation
Pneumatic Division - Europe
606
