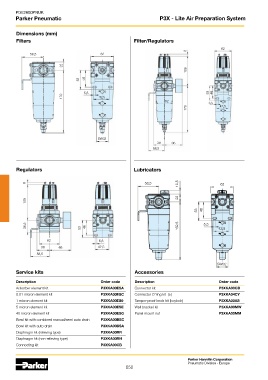

P. 650
PDE2600PNUK
Parker Pneumatic P3X - Lite Air Preparation System
Dimensions (mm)
Filters Filter/Regulators
62
8
58,5 62
22
109
53 46
5,5 53 46
170 42,5
62
5,5
170 42,5
SW32
39 66
58,5
Regulators Lubricators
8 58,5 10,5 62
22
109
53 46
36,5 53 46 162,5 5,5 42,5
62 5,5
39 66 42,5
58,5
SW32
Service kits Accessories
Description Order code Description Order code
Adsorber element kit P3XKA00ESA Connector kit P3XKA00CB
0.01 micron element kit P3XKA00ESC Connector O’ring kit (5) P3XKA04CY
1 micron element kit P3XKA00ES9 Tamper-proof knob kit (keylock) P3XKA00AS
5 micron element kit P3XKA00ESE Wall bracket kit P3XKA00MW
40 micron element kit P3XKA00ESG Panel mount nut P3XKA00MM
Bowl kit with combined manual/semi auto drain P3XKA00BSC
Bowl kit with auto drain P3XKA00BSA
Diaphragm kit (relieving type) P3XKA00RR
Diaphragm kit (non-relieving type) P3XKA00RN
Connecting kit P3XKA00CB
Parker Hannifin Corporation
Pneumatic Division - Europe
650
