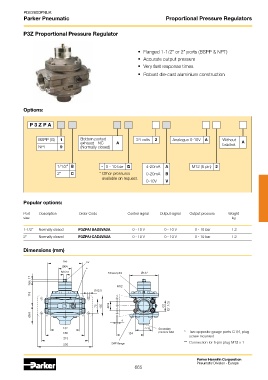

PDE2600PNUK
Parker Pneumatic Proportional Pressure Regulators

P3Z Proportional Pressure Regulator

Flanged 1-1/2” or 2” ports (BSPP & NPT)
Accurate output pressure
Very fast response times
Robust die-cast aluminium construction

Options:

P 3 Z P A

BSPP (G) 1 Bottom ported 24 volts 2 Analogue 0-10V A Without
exhaust - NC A bracket A
NPT 9 (Normally closed)

1/1/2” B * 0 - 10 bar D 4-20mA A M12 (5 pin) 2
2” C * Other pressures 0-20mA B
available on request.
0-10V V

Popular options:

Port Description Order Code Control signal Output signal Output pressure Weight
size kg

1-1/2” Normally closed P3ZPA1BAD2VA2A 0 - 10 V 0 - 10 V 0 - 10 bar 1.2
2” Normally closed P3ZPA1CAD2VA2A 0 - 10 V 0 - 10 V 0 - 10 bar 1.2

Dimensions (mm)

155
**
Ø64
M12x1 * Exhaust pilot Ø132
max. 17

Ø12.5 M12
115

70 100 42.9 G2 (G1.1/2)
88.5
4
132 77.8 Secondary
180 124 pressure relief * Two opposite gauge ports G1/4, plug
screw mounted
215
255 SAE flange ** Connection for 5-pin plug M12 x 1

Parker Hannifin Corporation
Pneumatic Division - Europe
665
