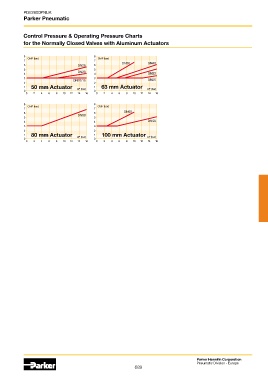

Control Pressure & Operating Pressure Charts
for the Normally Closed Valves with Aluminum Actuators

8 8
CtrlP (bar) CtrlP (bar)
7 7
6 DN25 6 DN50 DN40
5 5
4 DN20 4 DN32
3 3
DN10/15 DN25
2 2
1 50 mm Actuator ∆P (bar) 1 63 mm Actuator ∆P (bar)
0 0
0 2 4 6 8 10 12 14 16 0 2 4 6 8 10 12 14 16
8 CtrlP (bar) 8 CtrlP (bar)
7 7
6 6 DN65
DN50
5 5
4 4 DN50
3 3
2 2
1 80 mm Actuator ∆P (bar) 1 100 mm Actuator ∆P (bar)
0 0
0 2 4 6 8 10 12 14 16 0 2 4 6 8 10 12 14 16
