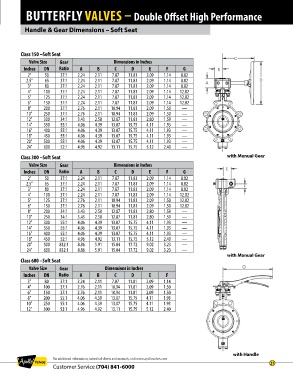

P. 21

BUTTERFLY VALVES – Double Offset High Performance



           Handle & Gear Dimensions – Soft Seat




          Class 150 –Soft Seat
             Valve Size   Gear                   Dimensions in Inches
           Inches  DN     Ratio   A       B      C      D      E      F       G
             2"     50    37:1   2.24    2.11   7.87   11.81   2.09   1.14   8.82
            2.5"    65    37:1   2.24    2.11   7.87   11.81   2.09   1.14   8.82
             3"     80    37:1   2.24    2.11   7.87   11.81   2.09   1.14   8.82
             4"    100    37:1   2.24    2.11   7.87   11.81   2.09   1.14   12.82
             5"    125    37:1   2.24    2.11   7.87   11.81   2.09   1.14   12.82
             6"    150    37:1   2.24    2.11   7.87   11.81   2.09   1.14   12.82
             8"    200    37:1   2.76    2.11   10.94   11.81   2.09   1.50   —
            10"    250    37:1   2.76    2.11   10.94   11.81   2.09   1.50   —
            12"    300    34:1   3.43    2.50   12.87   11.81   2.80   1.59   —
            14"    350    55:1   4.06    4.39   13.07   15.75   4.11   1.93   —
            16"    400    55:1   4.06    4.39   13.07   15.75   4.11   1.93   —
            18"    450    55:1   4.06    4.39   13.07   15.75   4.11   1.93   —
            20"    500    55:1   4.06    4.39   13.07   15.75   4.11   1.93   —
            24"    600    52:1   4.96    4.92   13.11   15.75   5.12   2.40   —

          Class 300 –Soft Seat                                                                  with Manual Gear
             Valve Size   Gear                   Dimensions in Inches
           Inches  DN     Ratio   A       B      C      D      E      F       G
             2"     50    37:1   2.24    2.11   7.87   11.81   2.09   1.14   8.82
            2.5"    65    37:1   2.24    2.11   7.87   11.81   2.09   1.14   8.82
             3"     80    37:1   2.24    2.11   7.87   11.81   2.09   1.14   8.82
             4"    100    37:1   2.24    2.11   7.87   11.81   2.09   1.14   12.82
             5"    125    37:1   2.76    2.11   10.94   11.81   2.09   1.50   12.82
             6"    150    37:1   2.76    2.11   10.94   11.81   2.09   1.50   12.82
             8"    200    34:1   3.43    2.50   12.87   11.81   2.80   1.59   —
            10"    250    34:1   3.43    2.50   12.87   11.81   2.80   1.59   —
            12"    300    55:1   4.06    4.39   13.07   15.75   4.11   1.93   —
            14"    350    55:1   4.06    4.39   13.07   15.75   4.11   1.93   —
            16"    400    55:1   4.06    4.39   13.07   15.75   4.11   1.93   —
            18"    450    52:1   4.96    4.92   13.11   15.75   5.12   2.40   —
            20"    500    832:1  8.86    5.91   15.04   17.72   9.02   3.23   —
            24"    600    832:1  8.86    5.91   15.04   17.72   9.02   3.23   —
                                                                                                with Manual Gear
          Class 600 –Soft Seat
             Valve Size   Gear               Dimensions in Inches
           Inches  DN     Ratio   A       B      C      D      E      F
             3"     80    37:1   2.24    2.11   7.87   11.81   2.09   1.14
             4"    100    37:1   2.76    2.11   10.94   11.81   2.09   1.50
             6"    150    37:1   2.76    2.11   10.94   11.81   2.09   1.50
             8"    200    55:1   4.06    4.39   13.07   15.75   4.11   1.93
            10"    250    55:1   4.06    4.39   13.07   15.75   4.11   1.93
            12"    300    52:1   4.96    4.92   13.11   15.75   5.12   2.40










                                                                                                  with Handle
                       For additional information, submittal sheets and manuals, visit www.apollovalves.com
                                                                                                                  21
                       Customer Service (704) 841-6000
