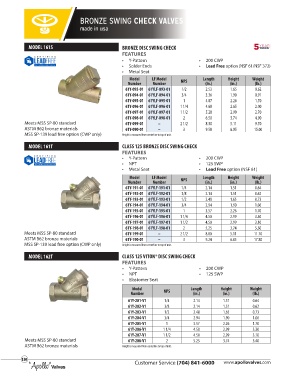

Page 130 - Apollo - Commercial Products Catalog

BRONZE SWING CHECK VALVES

made in usa

MODEL 161S BRONZE DISC SWING CHECK
FEATURES
• Y-Pattern • 200 CWP
• Solder Ends • Lead Free option (NSF 61/NSF 372)
• Metal Seat
Model LF Model Length Height Weight
Number Number NPS (in.) (in.) (lb.)
61Y-093-01 61YLF-093-01 1/2 2.53 1.65 0.62
61Y-094-01 61YLF-094-01 3/4 3.36 1.90 0.91
61Y-095-01 61YLF-095-01 1 4.07 2.26 1.70
61Y-096-01 61YLF-096-01 1 1/4 4.68 2.65 2.00
61Y-097-01 61YLF-097-01 1 1/2 5.28 2.99 2.70
61Y-098-01 61YLF-098-01 2 6.50 3.74 4.90
Meets MSS SP-80 standard 61Y-099-01 – 2 1/2 8.30 5.11 9.70
ASTM B62 bronze materials 61Y-090-01 – 3 9.58 6.05 15.00
MSS SP-139 lead free option (CWP only) Height is measured from centerline to top of unit.

MODEL 161T CLASS 125 BRONZE DISC SWING CHECK
FEATURES
• Y-Pattern • 200 CWP
• NPT • 125 SWP
• Metal Seat • Lead Free option (NSF 61)
Model LF Model Length Height Weight
Number Number NPS (in.) (in.) (lb.)
61Y-191-01 61YLF-191-01 1/4 2.14 1.51 0.64
61Y-192-01 61YLF-192-01 3/8 2.14 1.51 0.62
61Y-193-01 61YLF-193-01 1/2 2.48 1.65 0.73
61Y-194-01 61YLF-194-01 3/4 2.94 1.90 1.06
61Y-195-01 61YLF-195-01 1 3.57 2.26 1.70
61Y-196-01 61YLF-196-01 1 1/4 4.50 2.99 3.30
61Y-197-01 61YLF-197-01 1 1/2 4.50 2.99 3.10
61Y-198-01 61YLF-198-01 2 5.25 3.74 5.50
Meets MSS SP-80 standard 61Y-199-01 – 2 1/2 8.00 5.11 11.70
ASTM B62 bronze materials 61Y-190-01 – 3 9.24 6.05 17.80
MSS SP-139 lead free option (CWP only) Height is measured from centerline to top of unit.

MODEL 162T CLASS 125 VITON® DISC SWING CHECK
FEATURES
• Y-Pattern • 200 CWP
• NPT • 125 SWP
• Elastomer Seat
Model Length Height Weight
Number NPS (in.) (in.) (lb.)
61Y-201-V1 1/4 2.14 1.51 0.64
61Y-202-V1 3/8 2.14 1.51 0.62
61Y-203-V1 1/2 2.48 1.65 0.73
61Y-204-V1 3/4 2.94 1.90 1.06
61Y-205-V1 1 3.57 2.26 1.70
61Y-206-V1 1 1/4 4.50 2.99 3.30
61Y-207-V1 1 1/2 4.50 2.99 3.10
Meets MSS SP-80 standard 61Y-208-V1 2 5.25 3.74 5.40
ASTM B62 bronze materials Height is measured from centerline to top of unit.

130
