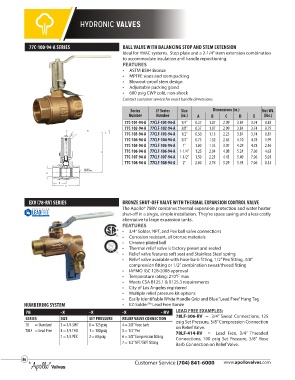

Page 86 - Apollo - Commercial Products Catalog

HYDRONIC VALVES

77C-100-94-A SERIES BALL VALVE WITH BALANCING STOP AND STEM EXTENSION
Ideal for HVAC systems. Stop plate and a 2-1/4” stem extension combination
to accommodate insulation and handle repositioning.
FEATURES
• ASTM B584 Bronze
• MPTFE seats and stem packing
• Blowout-proof stem design
• Adjustable packing gland
• 600 psig CWP cold, non-shock
Contact customer service for exact handle dimensions

Series LF Series Size Dimensions (in.) Net Wt.
Number Number (in.) A B C D E (lbs.)
77C-101-94-A 77CLF-101-94-A 1/4" 0.37 1.07 2.09 3.84 3.74 0.83
77C-102-94-A 77CLF-102-94-A 3/8" 0.37 1.07 2.09 3.84 3.74 0.79
E
77C-103-94-A 77CLF-103-94-A 1/2" 0.50 1.15 2.25 3.87 3.74 0.87
77C-104-94-A 77CLF-104-94-A 3/4" 0.75 1.32 2.65 4.10 4.78 1.99
77C-105-94-A 77CLF-105-94-A 1" 1.00 1.53 3.07 4.29 4.78 2.16
77C-106-94-A 77CLF-106-94-A 1-1/4" 1.25 2.04 4.08 5.24 7.06 4.63
D
77C-107-94-A 77CLF-107-94-A 1-1/2" 1.50 2.21 4.43 5.40 7.06 5.03
77C-108-94-A 77CLF-108-94-A 2" 2.00 2.76 5.29 5.93 7.06 8.33
3/4" NPT
BOTH ENDS
A
B
C

EXV (78-RV) SERIES BRONZE SHUT-OFF VALVE WITH THERMAL EXPANSION CONTROL VALVE
The Apollo® 78RV combines thermal expansion protection and water heater
shut-off in a single, simple installation. They’re space saving and a less costly
alternative to large expansion tanks.
FEATURES
• 3/4” Solder, NPT, and Pex ball valve connections
• Corrosion resistant, all bronze materials
• Chrome plated ball
• Thermal relief valve is factory preset and sealed
• Relief valve features soft seat and Stainless Steel spring
• Relief valve available with hose barb fitting, 1/2” Pex fitting, 3/8”
compression fitting or 1/2” combination sweat/thread fitting
• IAPMO IGC 128-2008 approval
• Temperature rating: 210°F max
• Meets CSA B125.1 & B125.3 requirements
• City of Los Angeles registered
• Multiple relief pressure kit options
• Easily Identifiable White Handle Grip and Blue “Lead Free” Hang Tag
NUMBERING SYSTEM • EZ-Solder Lead Free Bonze
TM
78 -X -X -X - RV LEAD FREE EXAMPLES:
SERIES SIZE SET PRESSURE RELIEF VALVE CONNECTION 78LF-306-RV = 3/4” Sweat Connections, 125
78 = Standard 3 = 3/4 SWT 0 = 125 psig 4 = 3/8” Hose barb psig Set Pressure, 3/8” Compression Connection
on Relief Valve.
78LF = Lead Free 4 = 3/4 THD 1 = 100 psig 5 = 1/2” Pex 78LF-414-RV = Lead Free, 3/4” Threaded
7 = 3/4 PEX 2 = 80 psig 6 = 3/8” Compression fitting Connections, 100 psig Set Pressure, 3/8” Hose
7 = 1/2” NPT/SWT fitting Barb Connection on Relief Valve.

86
