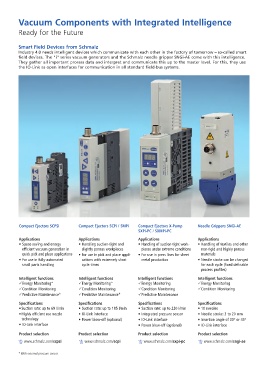

Vacuum Components with Integrated Intelligence
Ready for the Future
Smart Field Devices from Schmalz
Industry 4.0 needs intelligent devices which communicate with each other in the factory of tomorrow – so-called smart
field devices. The "i" series vacuum generators and the Schmalz needle gripper SNGi-AE come with this intelligence.
They gather all important process data and interpret and communicate this up to the master level. For this, they use
the IO-Link as open interfaces for communication in all standard field-bus systems.
Compact Ejectors SCPSi Compact Ejectors SCPi / SMPi Compact Ejectors X-Pump Needle Grippers SNGi-AE
SXPi-PC / SXMPi-PC
Applications Applications Applications Applications
• Space-saving and energy • Handling suction-tight and • Handling of suction-tight work- • Handling of textiles and other
efficient vacuum generation in slightly porous workpieces pieces under extreme conditions non-rigid and highly porous
quick pick and place applications • For use in pick and place appli- • For use in press lines for sheet materials
• For use in fully-automated cations with extremely short metal production • Needle stroke can be changed
small parts handling cycle times for each cycle (fixed definable
process profiles)
Intelligent functions Intelligent functions Intelligent functions Intelligent functions
Energy Monitoring* Energy Monitoring* Energy Monitoring Energy Monitoring
Condition Monitoring Condition Monitoring Condition Monitoring Condition Monitoring
Predictive Maintenance* Predictive Maintenance* Predictive Maintenance
Specifications Specifications Specifications Specifications
•Suction rate: up to 69 l/min • Suction rate: up to 185 l/min • Suction rate: up to 220 l/min • 10 needles
•Highly efficient eco nozzle • IO-Link interface • Integrated pressure sensor • Needle stroke: 3 to 20 mm
technology • Power blow-off (optional) • IO-Link interface • Insertion angle of 30° or 45°
• IO-Link interface • Power blow-off (optional) • IO-Link interface
Product selection Product selection Product selection Product selection
www.schmalz.com/scpsi www.schmalz.com/scpi www.schmalz.com/sxpi-pc www.schmalz.com/sngi-ae
* With external pressure sensor
