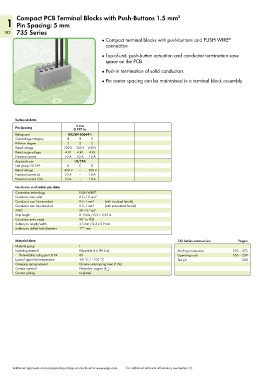

Page 184 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

Compact PCB Terminal Blocks with Push-Buttons 1.5 mm 2
1 Pin Spacing: 5 mm
182 735 Series
● Compact terminal blocks with push-buttons and PUSH WIRE
®
connection
● Top-of-unit, push-button actuation and conductor termination save
space on the PCB

● Push-in termination of solid conductors
● Pin center spacing can be maintained in a terminal block assembly

Technical data:
5 mm
Pin Spacing 0.197 in.
Ratings per IEC/EN 60664-1
Overvoltage category III III II
Pollution degree 3 2 2
Rated voltage 320 V 320 V 630 V
Rated surge voltage 4 kV 4 kV 4 kV
Nominal current 10 A 10 A 10 A
Approvals per UL/CSA
Use group UL1059 B C D
Rated voltage 300 V – 300 V
Nominal current UL 10 A – 10 A
Nominal current CSA 10 A – 10 A
Conductor and solder pin data:
Connection technology PUSH WIRE ®
Conductor size: solid 0.5–1.5 mm 2
Conductor size: fine-stranded 0.5–1 mm 2 (with insulated ferrule)
Conductor size: fine-stranded 0.5–1 mm 2 (with uninsulated ferrule)
AWG 20–16 “sol.”
Strip length 8–9 mm / 0.31–0.35 in.
Conductor entry angle 90° to PCB
Solder pin: length/width 3.5 mm / 0.4 x 0.9 mm
Solder pin: drilled hole diameter 1 +0.1 mm

Material data: 735 Series accessories: Pages:
Material group I
Insulating material Polyamide 6.6 (PA 6.6) Marking accessories 570 – 573
Flammability rating per UL 94 0V Operating tools 556 – 559
Lower/Upper limit temperature -60 °C / +105 °C Test pin 568
Clamping spring material Chrome nickel spring steel (CrNi)
Contact material Electrolytic copper (E )
Cu
Contact plating tin-plated

Additional approvals and corresponding ratings can be found at www.wago.com. For additional technical information, see Section 13.
