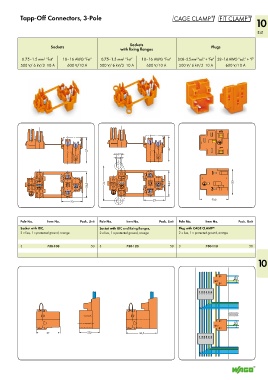

Page 543 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

"%

Tapp-Off Connectors, 3-Pole
10

541

Sockets
Sockets with fixing flanges Plugs

0.75–1.5 mm “f-st” 18–16 AWG “f-st” 0.75–1.5 mm “f-st” 18–16 AWG “f-st” 0.08–2.5 mm “sol.” + “f-st” 28–14 AWG “sol.” + “f”
2
2
2
500 V/ 6 kV/3 10 A 600 V/10 A 500 V/ 6 kV/3 10 A 600 V/10 A 500 V/ 6 kV/3 10 A 600 V/10 A

<_______27_______> > 4,2 < <_______27_______>

>3,8<

<______26,5______> <__________34__________> <______26,5______> <_______30_______>

<_____23_____> <_____23_____> <_______35,5_______>

Pole No. Item No. Pack. Unit Pole No. Item No. Pack. Unit Pole No. Item No. Pack. Unit
Socket with IDC, Socket with IDC and fixing flanges, Plug with CAGE CLAMP ®,
2 x live, 1 x protected ground, orange 2 x live, 1 x protected ground, orange 2 x live, 1 x protected ground, orange

3 730-103 50 3 730-123 50 3 730-113 50

10

<_______27_______> <_____22,5_____> <_________ 36,5 _________>
