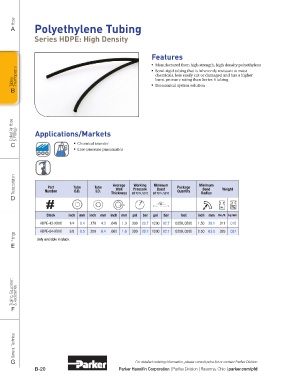

Page 132 - Parker - Cat 4660

Hose
A Polyethylene Tubing

Series HDPE: High Density

Features

ƒ Manufactured from high strength, high density polyethylene
Thermoplastic ƒ Semi-rigid tubing that is inherently resistant to most
chemicals, less easily cut or damaged and has a higher
Tubing ƒ Economical system solution
burst pressure rating than Series E tubing
B

Coiled Air Hose & Fittings Applications/Markets

C ƒ Chemical transfer
ƒ Low-pressure pneumatics

Transportation Part Tube Tube Average Pressure Minimum Package Minimum Weight
Working
Burst
Wall
Bend
D Number O.D. I.D. Thickness at 73°F /23°C at 73°F /23°C Quantity Radius
lbs
Black inch mm inch mm inch mm psi bar psi bar feet inch mm lbs./ft. kg./mtr.
HDPE-43-XXXX 1/4 6.4 .170 4.3 .040 1.0 300 20.7 1200 82.7 0250, 0500 1.50 38.1 .011 .016
HDPE-64-XXXX 3/8 8.5 .250 6.4 .062 1.6 300 20.7 1200 82.7 0250, 0500 2.50 63.5 .025 .037
Fittings Only available in black.
E

Tooling, Equipment & Accessories

F

General Technical

G For detailed ordering information, please consult price list or contact Parflex Division.
B-20 Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd
