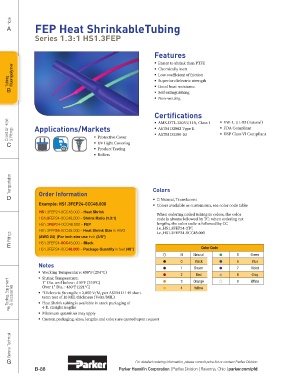

Page 200 - Parker - Cat 4660

Hose
A FEP Heat ShrinkableTubing
Series 1.3:1 HS1.3FEP

Features

ƒ Easier to shrink than PTFE
ƒ Chemically inert
Tubing Fluoropolymer ƒ Low coefficient of friction
ƒ Superior dielectric strength
B ƒ Good heat resistance
ƒ Self extinguishing
ƒ Non-wetting

Certifications
Coiled Air Hose & Fittings Applications/Markets ƒ AMS-DTL-23053/11A, Class 1 ƒ VW-1, UL-83 (natural)
ƒ FDA Compliant
ƒ ASTM D2902 Type II
ƒ USP Class VI Compliant
ƒ ASTM D3296-03
ƒ UV Light Covering
C ƒ Protective Cover
ƒ Product Testing
ƒ Rollers

Transportation Colors

D Order Information ƒ Natural, Translucent
Example: HS1.3FEP24-0CC48.000 ƒ Colors available as custom run, see color code table

HS1.3FEP24-0CC48.000 – Heat Shrink
When ordering coiled tubing in colors, the color
HS1.3FEP24-0CC48.000 – Shrink Ratio (1.3:1) code is always followed by TC; when ordering cut
HS1.3FEP24-0CC48.000 – FEP lengths, the color code is followed by CC
HS1.3FEP24-0CC48.000 – Heat Shrink Size in AWG i.e.,HS1.3FEP24-2TC
i.e.,HS1.3FEP24-0CC48.000
Fittings (AWG 24) (For inch size use inch (3/8")
E HS1.3FEP24-0CC48.000 – Black
HS1.3FEP24-0CC48.000 – Package Quantity in feet (48") Color Code
N Natural 5 Green
0 Black 6 Blue
Notes 1 Brown 7 Violet
ƒ Working Temperature: 400°F (204°C) 2 3 Orange 8 9 White
Red
Gray
ƒ Shrink Temperature:
Tooling, Equipment & Accessories ƒ *Dielectric Strength: > 2,000 V/M, per ASTM D 149 short 4 Yellow
1" Dia. and below : 410°F (210°C)
Over 1" Dia. : 430°F (221°C)
term test of 10 MIL thickness (Volts/MIL)
4-ft. straight lengths
F ƒ Heat Shrink tubing is available in stock packaging of
ƒ Minimum quantities may apply
ƒ Custom packaging, sizes, lengths and colors are quoted upon request

General Technical

G For detailed ordering information, please consult price list or contact Parflex Division.
B-88 Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd
