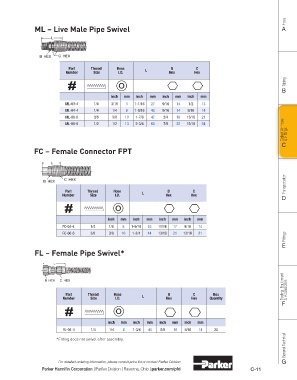

Page 231 - Parker - Cat 4660

Hose
ML – Live Male Pipe Swivel A

Part Thread Hose B C
Number Size I.D. L Hex Hex
Tubing
B
inch mm inch mm inch mm inch mm
ML-03-4 1/4 3/16 5 1-1/16 27 9/16 14 1/2 13
ML-04-4 1/4 1/4 6 1-9/16 40 9/16 14 9/16 14
ML-06-6 3/8 3/8 10 1-7/8 47 3/4 19 13/16 21
Coiled Air Hose & Fittings
ML-08-8 1/2 1/2 13 2-3/8 60 7/8 22 15/16 24

C
FC – Female Connector FPT

Transportation

Part Thread Hose B C
Number Size I.D. L Hex Hex
D

inch mm inch mm inch mm inch mm
FC-04-4 1/4 1/4 6 1-9/16 40 11/16 17 9/16 14
FC-06-6 3/8 3/8 10 1-3/4 44 13/16 21 13/16 21
Fittings
E
FL – Female Pipe Swivel*

Tooling, Equipment

Part Thread Hose B C Box & Accessories
Number Size I.D. L Hex Hex Quantity
F

inch mm inch mm inch mm inch mm
FL-04-4 1/4 1/4 6 1-3/4 44 5/8 16 9/16 14 20

General Technical
*Fitting does not swivel after assembly.

For detailed ordering information, please consult price list or contact Parflex Division. G
Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd C-11
