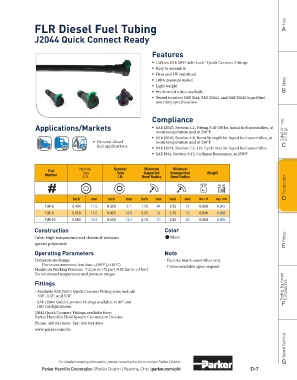

FLR Diesel Fuel Tubing A Hose

J2044 Quick Connect Ready

Features

ƒ Utilizes SAE 2044 Safe-Lock™ Quick Connect Fittings
ƒ Easy to assemble
ƒ Heat and UV stabilized
ƒ 100% pressure tested Tubing
ƒ Light weight
ƒ Pre-formed tubes available B
ƒ Tested to select SAE J844, SAE J2044, and SAE J2045 liquid fuel
assembly specifications

Compliance

Applications/Markets ƒ SAE J2045, Section 4.2, Fitting Pull-Off for liquid fuel assemblies, at Coiled Air Hose
room temperature and at 250°F
ƒ SAE J2045, Section 4.8, Burst Strength for liquid fuel assemblies, at & Fittings
ƒ General diesel room temperature and at 250°F
fuel applications ƒ SAE J2044, Section 7.5, Life Cycle Test for liquid fuel assemblies C
ƒ SAE J844, Section 9.13, Collapse Resistance, at 250°F

Part Nominal Nominal Minimum Minimum
Supported
Number Tube Tube Bend Radius Unsupported Weight
O.D.
Transportation
Bend Radius
I.D.
lbs
inch mm inch mm inch mm inch mm lbs./ ft. kg./ mtr D
FLR-6 0.434 11.0 0.320 8.1 1.75 44 2.25 57 0.030 0.045
FLR-8 0.559 14.2 0.425 10.8 2.25 57 2.75 70 0.046 0.068
FLR-10 0.660 16.8 0.500 12.7 2.75 70 3.25 83 0.064 0.095
Construction Color

Tube: High-temperature and chemical-resistant Black Fittings
special polyamide E
Operating Parameters Note
Temperature Range: - Factory-made assemblies only
Use in environments less than +239°F (+115°C) - Colors available upon request
Maximum Working Pressure: -7.2 psi to +72 psi (-0.50 bar to + 5 bar)
Do not exceed temperature and pressure ranges
Fittings Tooling, Equipment

- Available SAE J2044 Quick Connect Fitting sizes include & Accessories
3/8", 1/2", and 5/8"
- SAE J2044 Quick Connect Fittings available in 90° and F
180° configurations.
J2044 Quick Connect Fittings available from
Parker Hannifin Fluid System Connectors Division
Phone: 269 692 6555 Fax: 269 694 4614
www.parker.com/fsc
General Technical

For detailed ordering information, please consult price list or contact Parflex Division. G
