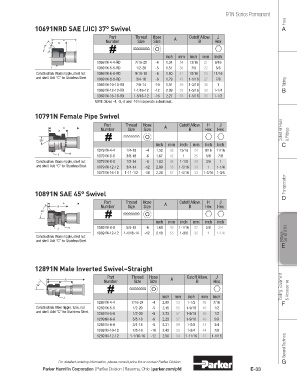

Page 291 - Parker - Cat 4660

91N Series Permanent
Hose
10691NRD SAE (JIC) 37° Swivel A

Part Thread Hose Cutoff Allow. J
A Number Size Size A B Hex
B

inch mm inch mm inch
10691N-4-4-RD 7/16-20 -4 1.34 34 13/16 21 9/16
J 10691N-5-5-RD 1/2-20 -5 1.51 38 7/8 22 5/8
Construction: Brass nipple, steel nut 10691N-6-6-RD 9/16-18 -6 1.60 41 15/16 24 11/16
and shell. Add “C” for Stainless Steel. 10691N-8-8-RD 3/4-16 -8 1.79 45 1-1/16 27 7/8
10691N-10-10-RD 7/8-14 -10 1.91 49 1-3/16 30 1 Tubing
10691N-12-12-RD 1-1/16-12 -12 2.09 52 1-5/16 33 1-1/4 B
10691N-16-16-RD 1-5/16-12 -16 2.27 58 1-5/16 33 1-1/2
NOTE: Sizes -4, -5,-8 and -10 Incorporate a dual seat..

10791N Female Pipe Swivel
Coiled Air Hose & Fittings
Part Thread Hose A Cutoff Allow. H J
Number Size Size B Hex Hex

inch mm inch mm inch inch C
10791N-4-4 1/4-18 -4 1.50 38 15/16 24 9/16 11/16
10791N-6-6 3/8-18 -6 1.67 42 1 25 5/8 7/8
Construction: Brass nipple, steel nut 10791N-8-8 1/2-14 -8 1.83 46 1-1/8 29 3/4 1
and shell. Add “C” for Stainless Steel. 10791N-12-12 3/4-14 -12 2.09 53 1-5/16 33 1 1-1/4
10791N-16-16 1-11-1/2 -16 2.26 57 1-5/16 33 1-3/16 1-3/8
Transportation

10891N SAE 45° Swivel
D
Part Thread Hose A Cutoff Allow. H J
Number Size Size B Hex Hex

inch mm inch mm inch inch
10891N-6-6 5/8-18 -6 1.69 43 1-1/16 27 5/8 3/4
10891N-12-12 1-1/16-14 -12 2.18 55 1-3/8 35 1 1-1/4 Series 91N
Construction: Brass nipple, steel nut Fittings
and shell. Add “C” for Stainless Steel.
E

12891N Male Inverted Swivel–Straight

Part Thread Hose Cutoff Allow. J
Number Size Size A B Hex
° Tooling, Equipment & Accessories

inch mm inch mm inch
12891N-4-4 7/16-24 -4 2.09 53 1-1/2 38 7/16 F
Construction: Steel nipple, tube, nut 12891N-5-5 1/2-20 -5 2.15 55 1-9/16 40 1/2
and shell. Add “C” for Stainless Steel. 12891N-5-6 1/2-20 -6 2.23 57 1-9/16 40 1/2
12891N-6-6 5/8-18 -6 2.23 57 1-9/16 40 5/8
12891N-8-8 3/4-18 -8 2.31 59 1-5/8 41 3/4
12891N-10-10 7/8-18 -10 2.43 58 1-3/4 44 7/8
General Technical
12891N-12-12 1-1/16-16 -12 2.50 64 1-11/16 43 1-1/16

For detailed ordering information, please consult price list or contact Parflex Division. G
Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd E-33
