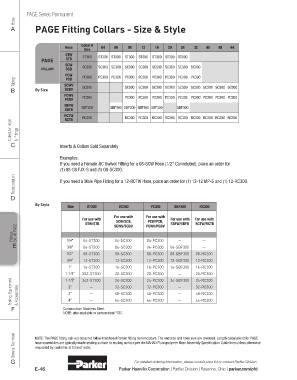

Page 304 - Parker - Cat 4660

PAGE Series Permanent
Hose
A PAGE Fitting Collars - Size & Style

Collar #
Hose Size 04 06 08 12 16 20 24 32 40 48 64
STW ST300 ST300 ST300 ST300 ST300 ST300 ST300 ST300
PAGE STB
SCW SC300 SC300 SC300 SC300 SC300 SC300 SC300 SC300 SC300
COLLARS SCB
PCW PC300 PC300 PC300 PC300 PC300 PC300 PC300 PC300 PC300
PCB
Tubing SCWV
B By Size SCBV SC300 SC300 SC300 SC300 SC300 SC300 SC300 SC300 SC300 SC300
PCWV
PCBV PC300 PC300 PC300 PC300 PC300 PC300 PC300 PC300 PC300 PC300
SBFW
SBFB SBF300 SBF300 SBF300 SBF300 SBF300 SBF300
RCTW RC300 RC300 RC300 RC300 RC300 RC300 RC300 RC300 RC300 RC300
RCTB
Coiled Air Hose & Fittings

C Inserts & Collars Sold Separately

Examples:
If you need a Female JIC Swivel Fitting for a 08-SCW Hose (1/2" Convoluted), place an order for
(1) 08-08 FJX-S and (1) 08-SC300.

Transportation If you need a Male Pipe Fitting for a 12-RCTW Hose, place an order for (1) 12-12 MP-S and (1) 12-RC300.

D
By Style
Size ST300 SC300 PC300 SBF300 RC300
For use with For use with
For use with SCW/SCB, PCW/PCB, For use with For use with
STW/STB SCWV/SCBV PCWV/PCBV SBFW/SBFB RCTW/RCTB
Fittings Series PAGE 1/4" 04-ST300 04-SC300 04-PC300 — —

E 3/8" 06-ST300 06-SC300 06-PC300 06-SBF300 —

1/2" 08-ST300 08-SC300 08-PC300 08-SBF300 08-RC300
3/4" 12-ST300 12-SC300 12-PC300 12-SBF300 12-RC300
1" 16-ST300 16-SC300 16-PC300 16-SBF300 16-RC300
—
1-1/4" 20Z-ST300 20-SC300 20-PC300 24-SBF300 20-RC300
Tooling, Equipment & Accessories 2" — 32-SC300 32-PC300 — 32-RC300
24-RC300
24-SC300
24Z-ST300
24-PC300
1-1/2"
—
—
48-SC300
48-PC300
48-RC300
3"
64-SC300
—
64-RC300
4"
64-PC300
—
F Construction: Stainless Steel.
NOTE: also available in carbon steel “CS”.
General Technical NOTE: The PAGE fitting call-out does not follow traditional Parker fitting nomenclature. The end size and hose size are reversed. Length calculations for PAGE
hose assemblies are typically made sealing surface to sealing surface per the NAHAD Fluoropolymer Hose Assembly Specification Guidelines unless otherwise
requested by customer at time of order.
G For detailed ordering information, please consult price list or contact Parflex Division.
